Current location: Home > Pillow_blcok_bearings > UCP300 SERIES

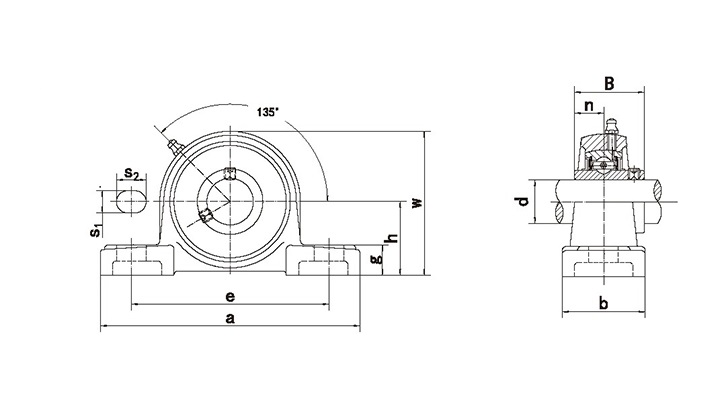

UCP300 SERIES



Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d h a e b s1 s2 g w B n
UCP305 25 45 175 132 45 17 20 15 85 38 15 M14 UC305 P305 1.268
UCP 305-13 13/16 1-49/64 6-7/8 5-3/16 1-25/32 43/64 25/32 19/32 3-11/32 1.4961 0.591 1/2 UC305-13 P305 1.318
UCP 305-14 7/8 1-49/64 6-7/8 5-3/16 1-25/32 43/64 25/32 19/32 3-11/32 1.4961 0.591 1/2 UC305-14 P305 1.298
UCP 305-15 15/16 1-49/64 6-7/8 5-3/16 1-25/32 43/64 25/32 19/32 3-11/32 1.4961 0.591 1/2 UC305-15 P305 1.278
UCP 305-16 1 1-49/64 6-7/8 5-3/16 1-25/32 43/64 25/32 19/32 3-11/32 1.4961 0.591 1/2 UC305-16 P305 1.268
UCP306 30 50 180 140 50 17 20 18 95 43 17 M14 UC306 P306 1.732
UCP 306-17 1-1/16 1-31/32 7-3/32 5-1/2 1-31/32 43/64 25/32 23/32 3-3/4 1.6929 0.669 1/2 UC306-17 P306 1.786
UCP 306-18 1-1/8 1-31/32 7-3/32 5-1/2 1-31/32 43/64 25/32 23/32 3-3/4 1.6929 0.669 1/2 UC306-18 P306 1.756
UCP 306-19 1-3/16 1-31/32 7-3/32 5-1/2 1-31/32 43/64 25/32 23/32 3-3/4 1.6929 0.669 1/2 UC306-19 P306 1.736
UCP307 35 56 210 160 56 17 25 20 106 48 19 M14 UC307 P307 2.383
UCP 307-20 1-1/4 1-13/64 8-9/32 6-5/16 2-13/64 43/64 31/32 25/32 4-3/16 1.8898 0.748 1/2 UC307-20 P307 2.439
UCP 307-21 1-5/16 1-13/64 8-9/32 6-5/16 2-13/64 43/64 31/32 25/32 4-3/16 1.8898 0.748 1/2 UC307-21 P307 2.409
UCP 307-22 1-3/8 1-13/64 8-9/32 6-5/16 2-13/64 43/64 31/32 25/32 4-3/16 1.8898 0.748 1/2 UC307-22 P307 2.379
UCP 307-23 1-7/16 1-13/64 8-9/32 6-5/16 2-13/64 43/64 31/32 25/32 4-3/16 1.8898 0.748 1/2 UC307-23 P307 2.349
UCP308 40 60 220 170 60 17 27 22 116 52 19 M14 UC308 P308 3.075
UCP 308-24 1-1/2 2-23/64 8-21/32 6-11/16 2-3/8 43/64 1-11/16 7/8 4-9/16 2.0472 0.748 1/2 UC308-24 P308 3.121
UCP 308-25 1-9/16 2-23/64 8-21/32 6-11/16 2-3/8 43/64 1-11/16 7/8 4-9/16 2.0472 0.748 1/2 UC308-25 P308 3.081
UCP309 45 67 245 190 67 20 30 24 129 57 22 M16 UC309 P309 4.173
UCP 309-26 1-5/8 2-41/64 9-21/32 7-15/32 2-5/8 25/32 1-3/16 15/16 5-3/32 2.2441 0.866 5/8 UC309-26 P309 4.268
UCP 309-27 1-11/16 2-41/64 9-21/32 7-15/32 2-5/8 25/32 1-3/16 15/16 5-3/32 2.2441 0.866 5/8 UC309-27 P309 4.228
