型号type |
轴心直径（D/min） |
外径公差（um） |
重量(kg/m) |
有效硬化层深度(mm) |
|
g6 |
|
N3 |
3 |
-4
-12 |
|
1.0以上 |
|
N4 |
4 |
0.10 |
|
N5 |
5 |
0.16 |
|
N6 |
6 |
0.23 |
|
N8 |
8 |
-5
-14 |
0.40 |
|
N10 |
10 |
0.62 |
|
N12 |
12 |
-6
-17 |
0.89 |
1.6以上 |
|
N13 |
13 |
1.05 |
|
N15 |
15 |
1.39 |
|
N16 |
16 |
1.58 |
|
N20 |
20 |
-7
-20 |
2.47 |
2.5以上 |
|
N25 |
25 |
3.85 |
|
N30 |
30 |
5.55 |
|
N35 |
35 |
-9
-25 |
7.55 |
3.5以上 |
|
N40 |
40 |
9.87 |
|
N50 |
50 |
15.41 |
|
N60 |
60 |
-10
-29 |
22.20 |
|
N80 |
80 |
39.46 |
|
N100 |
100 |
-12
-34 |
61.66 |

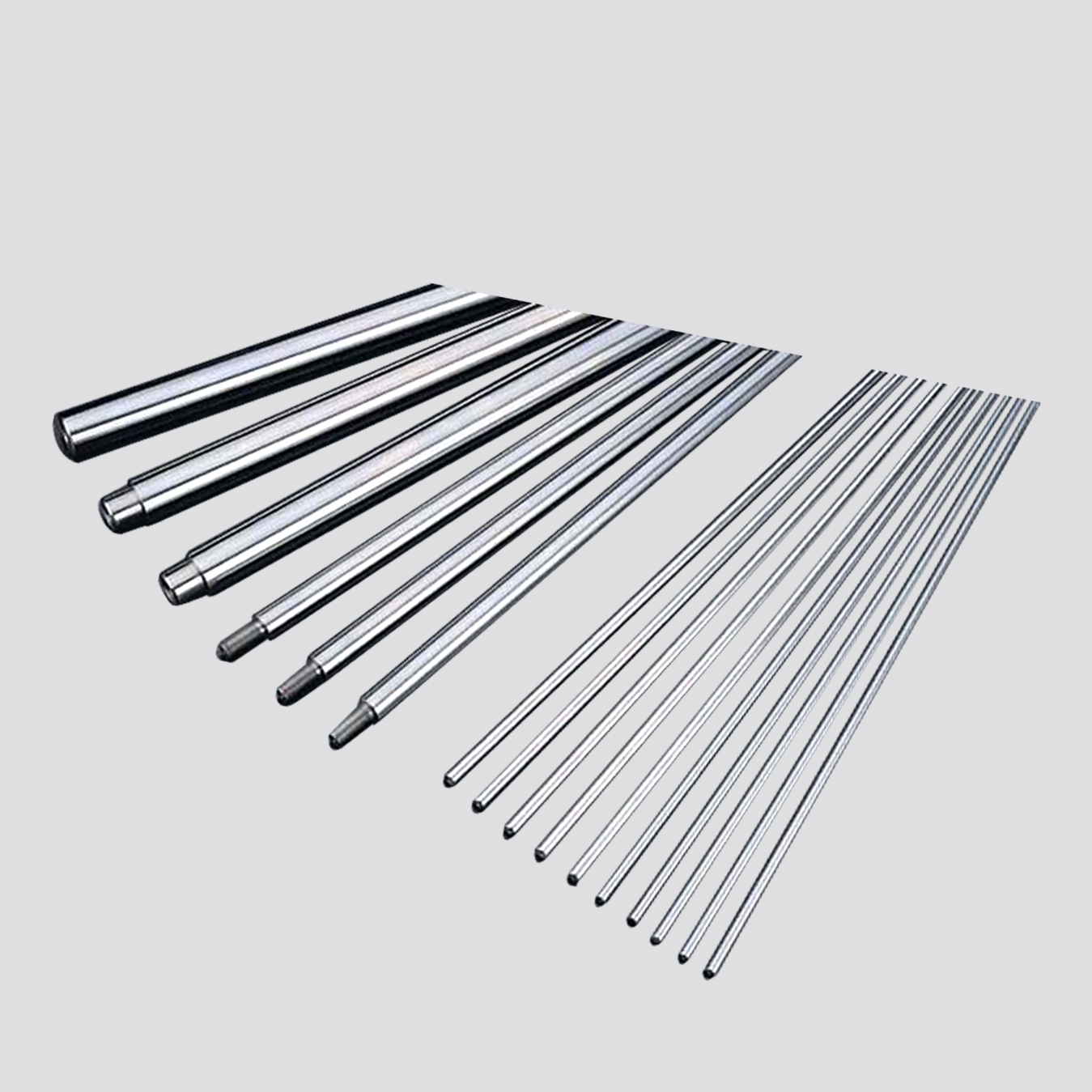

Special machining of shaft
We can provide you with various linear shafts with diameter of 8mm~ 150mm and maximum length of up to 6000mm.
1. When you have special requirements in length, our company can meet the processing requirements of different lengths. When you require a length of more than 6000mm, we can also connect you.
2.When you have special processing requirements for the shaft, such as the thread of the car, the hole of the end of the car, the keyway, the radial drilling, the axle of the cat, ete. We can provide processing for you to ensure the accuracy of the products. Please provide sketches or special processing requirements for the product.
