UCSHE200 Series

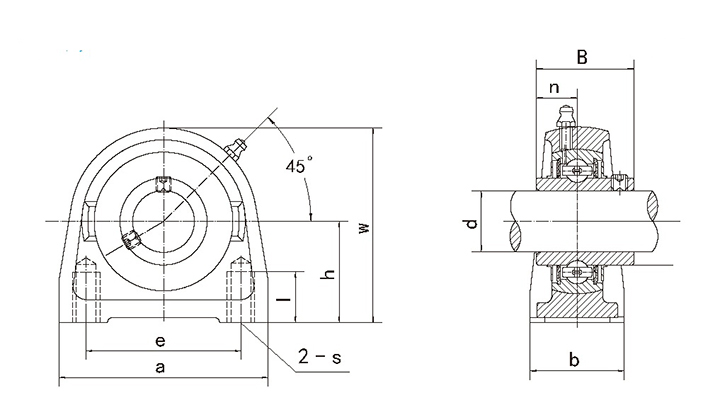

Unit NO.	Dimensions(mm/in.)										Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
Unit NO.	d	h	a	e	b	s	l	w	B	n	Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
UCSHE201	12	30.2	63	47	30	M8	10	57	27.4	11.5	M8	UCS201RG	SHE201	0.33
UCSHE202	15	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	2-1/4	1.0787	0.4527	M8	UCS202RG	SHE202	0.32
UCSHE203	17	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	2-1/4	1.0787	0.4527	M8	UCS203RG	SHE203	0.31
UCSHE204	20	33.3	65	50.8	32	M8	10	64	31	12.7	M8	UC204RG	SHE204	0.35
UCSHE204	20	1-5/16	2-9/16	2	1-17/64	M8	25/64	2-33/64	1.2205	0.5	M8	UC204RG	SHE204	0.35
UCSHE205	25	36.5	70	50.8	36	M10	12.5	70	34.1	14.3	M10	UC205RG	SHE205	0.41
UCSHE205	25	1-7/16	2-3/4	2	1-27/64	M10	31/64	2-3/4	1.3425	0.563	M10	UC205RG	SHE205	0.41
UCSHE206	30	42.9	98	76.2	40	M10	12.5	82	38.1	15.9	M10	UC206RG	SHE206	0.74
UCSHE206	30	1-11/16	3-55/64	3	1-37/64	M10	31/64	3-15/64	1.5	0.626	M10	UC206RG	SHE206	0.74
UCSHE207	35	47.6	103	82.6	45	M10	12.5	93	42.9	17.5	M10	UC207RG	SHE207	0.96
UCSHE207	35	1-7/8	4-1/16	3-1/4	1-49/64	M10	31/64	3-21/32	1.689	0.689	M10	UC207RG	SHE207	0.96
UCSHE208	40	49.2	116	88.9	48	M12	15	99	49.2	19	M12	UC208RG	SHE208	1.22
UCSHE208	40	1-15/16	4-9/16	3-1/2	1-57/64	M12	19/32	3-57/64	1.937	0.748	M12	UC208RG	SHE208	1.22
UCSHE209	45	54	120	95.3	48	M12	15	107	49.2	19	M12	UC209RG	SHE209	1.45
UCSHE209	45	2-1/8	4-47/64	3-3/4	1-57/64	M12	19/32	4-7/32	1.937	0.748	M12	UC209RG	SHE209	1.45
UCSHE210	50	57.2	135	101.6	54	M16	20	115	51.6	19	M16	UC210RG	SHE210	2.02
UCSHE210	50	2-1/4	5-5/16	4	2-1/8	M16	25/32	4-17/32	2.0315	0.748	M16	UC210RG	SHE210	2.02
UCSHE211	55	64	150	118	60	M16	20	125	55.6	22.2	M16	UC211RG	SHE211	2.1
UCSHE211	55	2-33/64	5-29/32	4-41/64	2-23/64	M16	25/32	4-59/64	2.189	0.874	M16	UC211RG	SHE211	2.1
UCSHE212	60	69.9	150	118	60	M16	20	140	65.1	25.4	M16	UC212RG	SHE212	2.7
