UCHA200 Series

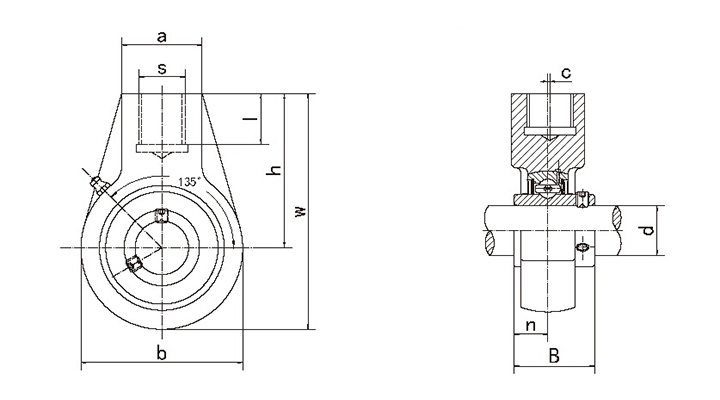

Unit NO.	Dimensions(mm/in.)										Bearing NO.	Housing NO.	Weight(kg)
Unit NO.	d	h	w	b	c	a	s	l	B	n	Bearing NO.	Housing NO.	Weight(kg)
UCHA201	12	64	96	64	0	40	G-3/4	19	31	12.7	UC201	HA201	0.637
UCHA 201-8	1/2	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC201-8	HA201	0.627
UCHA202	15	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC202	HA202	0.627
UCHA 202-9	9/16	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC202-9	HA202	0.627
UCHA 202-10	5/8	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC202-10	HA202	0.627
UCHA203	17	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC203	HA203	0.617
UCHA 203-11	11/16	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC203-11	HA203	0.607
UCHA204	20	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC204	HA204	0.596
UCHA 204-12	3/4	2-33/64	3-25/32	2-33/64	0	1-37/64	G-3/4	3/4	1.2205	0.5	UC204-12	HA204	0.596
UCHA205	25	64	103	78	0	40	G-3/4	19	34.1	14.3	UC205	HA205	0.794
UCHA 205-13	13/16	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.3425	0.563	UC205-13	HA205	0.831
UCHA 205-14	7/8	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.3425	0.563	UC205-14	HA205	0.821
UCHA 205-15	15/16	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.3425	0.563	UC205-15	HA205	0.801
UCHA 205-16	1	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.3425	0.563	UC205-16	HA205	0.791
UCHA206	30	64	103	78	0	40	G-3/4	19	38.1	15.9	UC206	HA206	0.778
UCHA 206-17	1-1/16	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.5	0.626	UC206-17	HA206	0.788
UCHA 206-18	1-1/8	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.5	0.626	UC206-18	HA206	0.798
UCHA 206-19	1-3/16	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.5	0.626	UC206-19	HA206	0.778
UCHA 206-20	1-1/4	2-33/64	4-1/16	3-5/64	0	1-37/64	G-3/4	3/4	1.5	0.626	UC206-20	HA206	0.768
UCHA207	35	70	116	92	0	40	G-3/4	19	42.9	17.5	UC207	HA207	1.099

Unit NO.	Dimensions(mm/in.)										Bearing NO.	Housing NO.	Weight(kg)
Unit NO.	d	h	w	b	c	a	s	l	B	n	Bearing NO.	Housing NO.	Weight(kg)
UCHA 207-20	1-1/4	2-3/4	4-9/16	3-5/8	0	1-37/64	G-3/4	3/4	1.689	0.689	UC207-20	HA207	1.164
UCHA 207-21	1-5/16	2-3/4	4-9/16	3-5/8	0	1-37/64	G-3/4	3/4	1.689	0.689	UC207-21	HA207	1.134
UCHA 207-22	1-3/8	2-3/4	4-9/16	3-5/8	0	1-37/64	G-3/4	3/4	1.689	0.689	UC207-22	HA207	1.104
UCHA 207-23	1-7/16	2-3/4	4-9/16	3-5/8	0	1-37/64	G-3/4	3/4	1.689	0.689	UC207-23	HA207	1.074
UCHA208	40	73	121	96	2	40	G-3/4	19	49.2	19	UC208	HA208	1.218
UCHA 208-24	1-1/2	2-7/8	4-49/64	3-25/32	5/64	1-37/64	G-3/4	3/4	1.937	0.748	UC208-24	HA208	1.258
UCHA 208-25	1-9/16	2-7/8	4-49/64	3-25/32	5/64	1-37/64	G-3/4	3/4	1.937	0.748	UC208-25	HA208	1.228
UCHA209	45	82	136	108	5	48	G1	21	49.2	19	UC209	HA209	1.714
UCHA 209-26	1-5/8	3-15/64	5-23/64	4-1/4	13/64	1-57/64	G1	53/64	1.937	0.748	UC209-26	HA209	1.814
UCHA 209-27	1-11/16	3-15/64	5-23/64	4-1/4	13/64	1-57/64	G1	53/64	1.937	0.748	UC209-27	HA209	1.774
UCHA 209-28	1-3/4	3-15/64	5-23/64	4-1/4	13/64	1-57/64	G1	53/64	1.937	0.748	UC209-28	HA209	1.734
UCHA210	50	83	142	118	5	48	G1	21	51.6	19	UC210	HA210	2.04
UCHA 210-29	1-13/16	3-17/64	5-19/32	4-41/64	13/64	1-57/64	G1	53/64	2.0315	0.748	UC210-29	HA210	2.16
UCHA 210-30	1-7/8	3-17/64	5-19/32	4-41/64	13/64	1-57/64	G1	53/64	2.0315	0.748	UC210-30	HA210	2.11
UCHA 210-31	1-15/16	3-17/64	5-19/32	4-41/64	13/64	1-57/64	G1	53/64	2.0315	0.748	UC210-31	HA210	2.06
UCHA 210-32	2	3-17/64	5-19/32	4-41/64	13/64	1-57/64	G1	53/64	2.0315	0.748	UC210-32	HA210	2.02
UCHA211	55	87	150	126	7	60	G1-1/4	25	55.6	22.2	UC211	HA211	2.447
UCHA 211-32	2	3-27/64	5-29/32	4-61/64	9/32	2-23/64	G1-1/4	63/64	2.189	0.874	UC211-32	HA211	2.597
UCHA 211-33	2-1/16	3-27/64	5-29/32	4-61/64	9/32	2-23/64	G1-1/4	63/64	2.189	0.874	UC211-33	HA211	2.537
UCHA 211-34	2-1/8	3-27/64	5-29/32	4-61/64	9/32	2-23/64	G1-1/4	63/64	2.189	0.874	UC211-34	HA211	2.497
