| Current location: Home > Pillow_blcok_bearings > UCCX Series |
| Unit NO. |

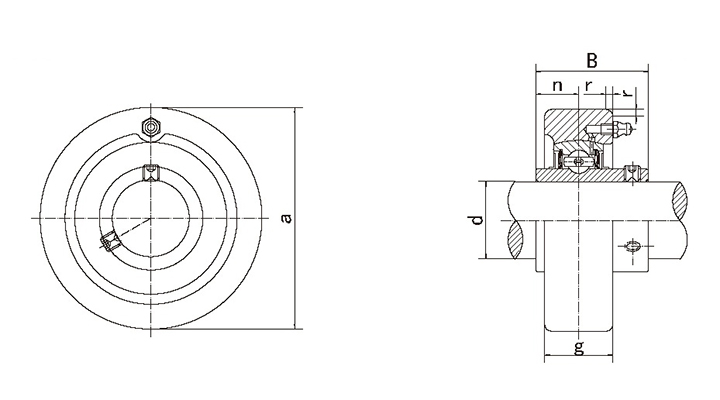

Dimensions(mm/in.) |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
g |
r |
B |
n |
| UCCX05 |
25 |
90 |
27 |
2 |
38.1 |
15.9 |
UCX05 |
CX05 |
1 |
| UCC X05-13 |
13/16 |
3.5433 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UCX05-13 |
CX05 |
1 |
| UCC X05-14 |
7/8 |
3.5433 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UCX05-14 |
CX05 |
1 |
| UCC X05-15 |
15/16 |
3.5433 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UCX05-15 |
CX05 |
1 |
| UCC X05-16 |
1 |
3.5433 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UCX05-16 |
CX05 |
1 |
| UCCX06 |
30 |
100 |
30 |
2.5 |
42.9 |
17.5 |
UCX06 |
CX06 |
1.3 |
| UCC X06-17 |
1-1/16 |
3.937 |
1-3/16 |
0.098 |
1.689 |
0.689 |
UCX06-17 |
CX06 |
1.3 |
| UCC X06-18 |
1-1/8 |
3.937 |
1-3/16 |
0.098 |
1.689 |
0.689 |
UCX06-18 |
CX06 |
1.3 |
| UCC X06-19 |
1-3/16 |
3.937 |
1-3/16 |
0.098 |
1.689 |
0.689 |
UCX06-19 |
CX06 |
1.3 |
| UCC X06-20 |
1-1/4 |
3.937 |
1-3/16 |
0.098 |
1.689 |
0.689 |
UCX06-20 |
CX06 |
1.3 |
| UCCX07 |
35 |
110 |
34 |
2.5 |
49.2 |
19 |
UCX07 |
CX07 |
1.7 |
| UCC X07-21 |
1-5/16 |
4.3307 |
1-11/32 |
0.098 |
1.937 |
0.748 |
UCX07-21 |
CX07 |
1.7 |
| UCC X07-22 |
1/3/8 |
4.3307 |
1-11/32 |
0.098 |
1.937 |
0.748 |
UCX07-22 |
CX07 |
1.7 |
| UCC X07-23 |
1-7/16 |
4.3307 |
1-11/32 |
0.098 |
1.937 |
0.748 |
UCX07-23 |
CX07 |
1.7 |
| UCCX08 |
40 |
120 |
38 |
2.5 |
49.2 |
19 |
UCX08 |
CX08 |
2.2 |
| UCC X08-24 |
1-1/2 |
4.7244 |
1-1/2 |
0.098 |
1.937 |
0.748 |
UCX08-24 |
CX08 |
2.2 |
| UCC X08-25 |
1-9/16 |
4.7244 |
1-1/2 |
0.098 |
1.937 |
0.748 |
UCX08-25 |
CX08 |
2.2 |
| UCCX09 |
45 |
120 |
38 |
2.5 |
51.6 |
19 |
UCX09 |
CX09 |
2.1 |
| UCC X09-26 |
1-5/8 |
4.7244 |
1-1/2 |
0.098 |
2.0315 |
0.748 |
UCX09-26 |
CX09 |
2.1 |
| UCC X09-27 |
1-11/16 |
4.7244 |
1-1/2 |
0.098 |
2.0315 |
0.748 |
UCX09-27 |
CX09 |
2.1 |
| Unit NO. |
Dimensions(mm/in.) |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
g |
r |
B |
n |
| UCC X09-28 |
1-3/4 |
4.7244 |
1-1/2 |
0.098 |
2.0315 |
0.748 |
UCX09-28 |
CX09 |
2.1 |
| UCC X09-29 |
1-13/16 |
4.7244 |
1-1/2 |
0.098 |
2.0315 |
0.748 |
UCX09-29 |
CX09 |
2.1 |
| UCCX10 |
50 |
130 |
40 |
2.5 |
55.6 |
22.2 |
UCX10 |
CX10 |
2.6 |
| UCC X10-30 |
1-7/8 |
5.1181 |
1-37/64 |
0.098 |
2.189 |
0.874 |
UCX10-30 |
CX10 |
2.6 |
| UCC X10-31 |
1-15/16 |
5.1181 |
1-37/64 |
0.098 |
2.189 |
0.874 |
UCX10-31 |
CX10 |
2.6 |
| UCC X10-32 |
2 |
5.1181 |
1-37/64 |
0.098 |
2.189 |
0.874 |
UCX10-32 |
CX10 |
2.6 |
| UCCX11 |
55 |
150 |
42 |
3 |
65.1 |
25.4 |
UCX11 |
CX11 |
3.9 |
| UCC X11-33 |
2-1/16 |
5.9055 |
1-21/32 |
0.118 |
2.563 |
1 |
UCX11-33 |
CX11 |
3.9 |
| UCC X11-34 |
2-1/8 |
5.9055 |
1-21/32 |
0.118 |
2.563 |
1 |
UCX11-34 |
CX11 |
3.9 |
| UCC X11-35 |
2-3/16 |
5.9055 |
1-21/32 |
0.118 |
2.563 |
1 |
UCX11-35 |
CX11 |
3.9 |
| UCC X11-36 |
2-1/4 |
5.9055 |
1-21/32 |
0.118 |
2.563 |
1 |
UCX11-36 |
CX11 |
3.9 |
| UCC X11-37 |
2-5/16 |
5.9055 |
1-21/32 |
0.118 |
2.563 |
1 |
UCX11-37 |
CX11 |
3.9 |
| UCCX12 |
60 |
160 |
44 |
3 |
65.1 |
25.4 |
UCX12 |
CX12 |
4.6 |
| UCC X12-38 |
2-3/8 |
6.2992 |
1-47/64 |
0.118 |
2.563 |
1 |
UCX12-38 |
CX12 |
4.6 |
| UCC X12-39 |
2-7/16 |
6.2992 |
1-47/64 |
0.118 |
2.563 |
1 |
UCX12-39 |
CX12 |
4.6 |
|
|
|
