SBPR200 Series

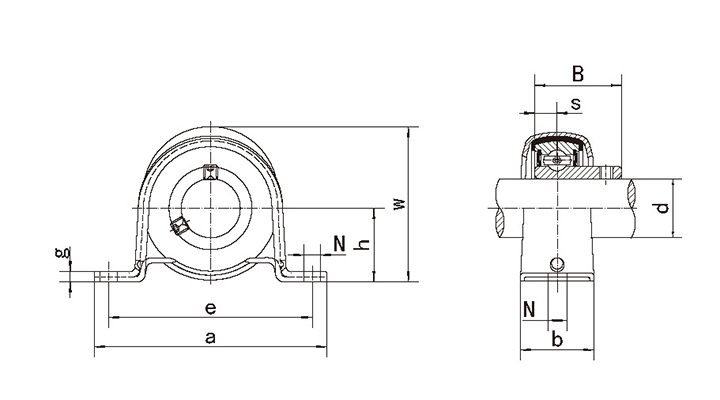

Unit NO.	Dimensions(mm/in.)										Bolt Size mm/in.	Bearing NO.	Housing NO.	Rubber Ring No.	Weight(kg)
Unit NO.	d	h	a	e	b	N	g	w	B	s	Bolt Size mm/in.	Bearing NO.	Housing NO.	Rubber Ring No.	Weight(kg)
SBPR201	12	25.4	98	76	32	9.5	3.2	50.5	22	6	M8	SB201	PP204	R-4	0.17
SBPR201-8	1/2	1	3-55/64	2-63/64	1-17/64	3/8	1/8	1-63/64	0.8661	0.2362	5/8	SB201-8	PP204	R-4	0.17
SBPR202	15	25.4	98	76	32	9.5	3.2	50.5	22	6	M8	SB202	PP204	R-4	0.17
SBPR202-10	5/8	1	3-55/64	2-63/64	1-17/64	3/8	1/8	1-63/64	0.8661	0.2362	5/8	SB202-10	PP204	R-4	0.17
SBPR203	17	1	3-55/64	2-63/64	1-17/64	3/8	1/8	1-63/64	0.8661	0.2362	5/8	SB203	PP204	R-4	0.17
SBPR203-11	11/16	1	3-55/64	2-63/64	1-17/64	3/8	1/8	1-63/64	0.8661	0.2362	5/8	SB203-11	PP204	R-4	0.17
SBPR204	20	28.6	108	86	32	11.5	4	56.6	25	7	M10	SB204	PP205	R-5	0.24
SBPR204-12	3/4	1-1/8	4-1/4	3-25/64	1-17/64	29/64	5/32	2-15/64	0.9843	0.2756	3/8	SB204-12	PP205	R-5	0.24
SBPR205	25	33.3	117	95	38	11.5	4	66.3	27	7.5	M10	SB205	PP206	R-6	0.35
SBPR205-14	7/8	1-5/16	4-39/64	3-47/64	1-1/2	29/64	5/32	2-39/64	1.063	0.295	3/8	SB205-14	PP206	R-6	0.35
SBPR205-15	15/16	1-5/16	4-39/64	3-47/64	1-1/2	29/64	5/32	2-39/64	1.063	0.295	3/8	SB205-15	PP206	R-6	0.35
SBPR205-16	1	1-5/16	4-39/64	3-47/64	1-1/2	29/64	5/32	2-39/64	1.063	0.295	3/8	SB205-16	PP206	R-6	0.35
SBPR206	30	39.7	129	106	42	11.5	4.6	78	30	8	M10	SB206	PP207	R-7	0.48
SBPR206-17	1-1/16	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.1811	0.315	3/8	SB206-17	PP207	R-7	0.48
SBPR206-18	1-1/8	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.1811	0.315	3/8	SB206-18	PP207	R-7	0.48
SBPR206-19	1-3/16	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.1811	0.315	3/8	SB206-19	PP207	R-7	0.48
SBPR206-20	1-1/4	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.1811	0.315	3/8	SB206-20	PP207	R-7	0.48
