| Current location: Home > Pillow_blcok_bearings > CSBRC200 Series |
| Unit NO. |

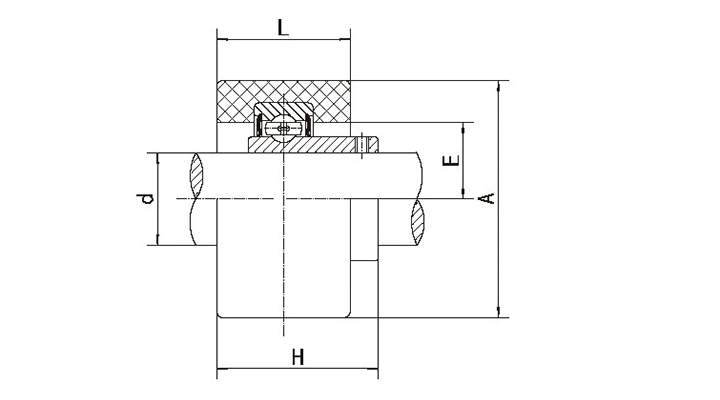

Dimensions(mm/in.) |
Bearing NO. |
Rubber Ring NO. |
Weight(kg) |
| d |
A |
L |
E |
H |
| CSBRC201 |
12 |
64.3 |
25.4 |
34.9 |
29 |
CSB201 |
RC-3 |
0.16 |
| CSBRC201-8 |
1/2 |
2-17/32 |
1 |
1-3/8 |
1-9/64 |
CSB201-8 |
RC-3 |
0.16 |
| CSBRC202 |
15 |
64.3 |
25.4 |
34.9 |
29 |
CSB202 |
RC-3 |
1.61 |
| CSBRC202-10 |
5/8 |
2-17/32 |
1 |
1-3/8 |
1-9/64 |
CSB202-10 |
RC-3 |
1.61 |
| CSBRC203 |
17 |
64.3 |
25.4 |
34.9 |
29 |
CSB203 |
RC-3 |
0.16 |
| CSBRC203-11 |
11/16 |
2-17/32 |
1 |
1-3/8 |
1-9/64 |
CSB203-11 |
RC-3 |
0.16 |
| CSBRC204 |
20 |
64.3 |
25.4 |
39.7 |
31 |
CSB204 |
RC-4 |
0.22 |
| CSBRC204-12 |
3/4 |
2-17/32 |
1 |
1-9/16 |
1-7/32 |
CSB204-12 |
RC-4 |
0.22 |
| CSBRC205 |
25 |
64.3 |
25.4 |
45.2 |
32.5 |
CSB205 |
RC-5 |
0.24 |
| CSBRC205-14 |
7/8 |
2-17/32 |
1 |
1-25/32 |
1-9/32 |
CSB205-14 |
RC-5 |
0.24 |
| CSBRC205-15 |
15/16 |
2-17/32 |
1 |
1-25/32 |
1-9/32 |
CSB205-15 |
RC-5 |
0.24 |
| CSBRC205-16 |
1 |
2-17/32 |
1 |
1-25/32 |
1-9/32 |
CSB205-16 |
RC-5 |
0.24 |
| CSBRC206 |
30 |
79 |
27 |
54 |
35.5 |
CSB206 |
RC-6 |
0.32 |
| CSBRC206-17 |
1-1/16 |
3-7/64 |
1-1/16 |
2-1/8 |
1-13/32 |
CSB206-17 |
RC-6 |
0.32 |
| CSBRC206-18 |
1-1/8 |
3-7/64 |
1-1/16 |
2-1/8 |
1-13/32 |
CSB206-18 |
RC-6 |
0.32 |
| CSBRC206-19 |
1-3/16 |
3-7/64 |
1-1/16 |
2-1/8 |
1-13/32 |
CSB206-19 |
RC-6 |
0.32 |
|
|
|
