| Current location: Home > Pillow_blcok_bearings > CSARC200 Series |
| Unit NO. |

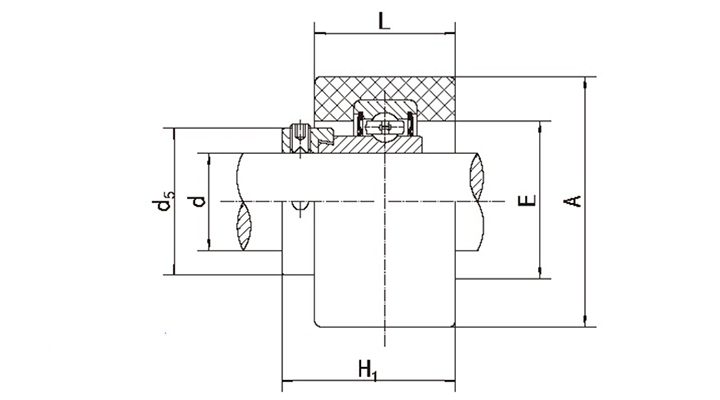

Dimensions(mm/in.) |
Bearing NO. |
Rubber Ring NO. |
Weight(kg) |
| d |
A |
L |
E |
H1 |
d5 |
| CSARC201 |
12 |
64.3 |
25.4 |
34.9 |
34.9 |
28.6 |
CSA201 |
RC-3 |
0.2 |
| CSARC201-8 |
1/2 |
2-17/32 |
1 |
1-3/8 |
1-3/8 |
1-1/8 |
CSA201-8 |
RC-3 |
0.2 |
| CSARC202 |
15 |
64.3 |
25.4 |
34.9 |
34.9 |
28.6 |
CSA202 |
RC-3 |
0.2 |
| CSARC202-10 |
5/8 |
2-17/32 |
1 |
1-3/8 |
1-3/8 |
1-1/8 |
CSA202-10 |
RC-3 |
0.2 |
| CSARC203 |
17 |
64.3 |
25.4 |
34.9 |
34.9 |
28.6 |
CSA203 |
RC-3 |
0.2 |
| CSARC203-11 |
11/16 |
2-17/32 |
1 |
1-3/8 |
1-3/8 |
1-1/8 |
CSA203-11 |
RC-3 |
0.2 |
| CSARC204 |
20 |
64.3 |
25.4 |
39.7 |
36.1 |
33.3 |
CSA204 |
RC-4 |
0.24 |
| CSARC204-12 |
3/4 |
2-17/32 |
1 |
1-9/16 |
1-27/64 |
1-5/16 |
CSA204-12 |
RC-4 |
0.24 |
| CSARC205 |
25 |
64.3 |
25.4 |
45.2 |
36.1 |
38.1 |
CSA205 |
RC-5 |
0.26 |
| CSARC205-14 |
7/8 |
2-17/32 |
1 |
1-25/32 |
1-27/64 |
1-1/2 |
CSA205-14 |
RC-5 |
0.26 |
| CSARC205-15 |
15/16 |
2-17/32 |
1 |
1-25/32 |
1-27/64 |
1-1/2 |
CSA205-15 |
RC-5 |
0.26 |
| CSARC205-16 |
1 |
2-17/32 |
1 |
1-25/32 |
1-27/64 |
1-1/2 |
CSA205-16 |
RC-5 |
0.26 |
| CSARC206 |
30 |
79 |
27 |
54 |
40.2 |
44.5 |
CSA206 |
RC-6 |
0.36 |
| CSARC206-17 |
1-1/16 |
3-7/64 |
1-1/16 |
2-1/8 |
1-37/64 |
1-3/4 |
CSA206-17 |
RC-6 |
0.36 |
| CSARC206-18 |
1-1/8 |
3-7/64 |
1-1/16 |
2-1/8 |
1-37/64 |
1-3/4 |
CSA206-18 |
RC-6 |
0.36 |
| CSARC206-19 |
1-3/16 |
3-7/64 |
1-1/16 |
2-1/8 |
1-37/64 |
1-3/4 |
CSA206-19 |
RC-6 |
0.36 |
|
|
|
