Current location: Home > Pillow_blcok_bearings > HCFT200 Series

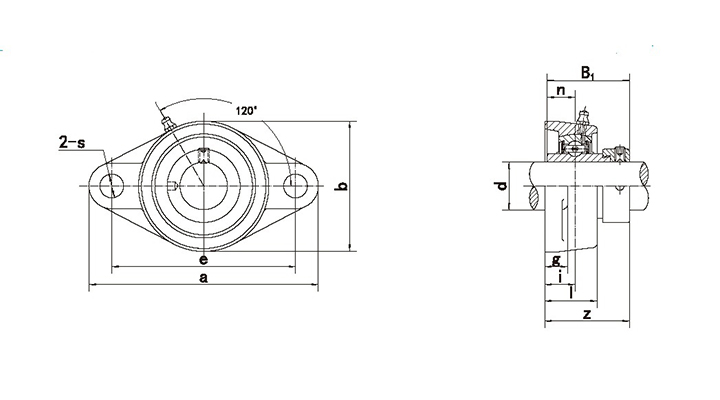

HCFT200 Series



Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e i g l s b z B1 n
HCFT204 20 112 89.5 19 11 29 10.5 60 45.6 43.7 17.1 M8 HC204 FT204 0.5
HCFT 204-12 3/4 4-13/32 3-33/64 3/4 7/16 1-9/64 27/64 2-3/8 1-51/64 1.72 0.673 5/16 HC204-12 FT204 0.5
HCFT205 25 124 99 20 13 31 13 70 46.9 44.4 17.5 M10 HC205 FT205 0.686
HCFT 205-13 13/16 4-7/8 3-57/64 25/32 1/2 1-7/32 33/64 2-3/4 1-27/32 1.748 0.689 3/8 HC205-13 FT205 0.736
HCFT 205-14 7/8 4-7/8 3-57/64 25/32 1/2 1-7/32 33/64 2-3/4 1-27/32 1.748 0.689 3/8 HC205-14 FT205 0.726
HCFT 205-15 15/16 4-7/8 3-57/64 25/32 1/2 1-7/32 33/64 2-3/4 1-27/32 1.748 0.689 3/8 HC205-15 FT205 0.706
HCFT 205-16 1 4-7/8 3-57/64 25/32 1/2 1-7/32 33/64 2-3/4 1-27/32 1.748 0.689 3/8 HC205-16 FT205 0.686
HCFT206 30 141 116.5 21 13 34 13 82 51.1 48.4 18.3 M10 HC206 FT206 0.96
HCFT 206-17 1-1/16 5-35/64 4-37/64 53/64 1/2 1-11/32 33/64 3-15/64 2-1/64 1.906 0.72 3/8 HC206-17 FT206 1.01
HCFT 206-18 1-1/8 5-35/64 4-37/64 53/64 1/2 1-11/32 33/64 3-15/64 2-1/64 1.906 0.72 3/8 HC206-18 FT206 0.98
HCFT 206-19 1-3/16 5-35/64 4-37/64 53/64 1/2 1-11/32 33/64 3-15/64 2-1/64 1.906 0.72 3/8 HC206-19 FT206 0.96
HCFT 206-20 1-1/4 5-35/64 4-37/64 53/64 1/2 1-11/32 33/64 3-15/64 2-1/64 1.906 0.72 3/8 HC206-20 FT206 0.93
HCFT207 35 156 130 21.5 14 36.5 14 95 53.8 51.1 18.8 M12 HC207 FT207 1.392
HCFT 207-20 1-1/4 6-9/64 5-1/8 27/32 35/64 1-7/16 35/64 3-47/64 2-1/8 2.012 0.74 7/16 HC207-20 FT207 1.462
HCFT 207-21 1-5/16 6-9/64 5-1/8 27/32 35/64 1-7/16 35/64 3-47/64 2-1/8 2.012 0.74 7/16 HC207-21 FT207 1.422
HCFT 207-22 1-3/8 6-9/64 5-1/8 27/32 35/64 1-7/16 35/64 3-47/64 2-1/8 2.012 0.74 7/16 HC207-22 FT207 1.392
HCFT 207-23 1-7/16 6-9/64 5-1/8 27/32 35/64 1-7/16 35/64 3-47/64 2-1/8 2.012 0.74 7/16 HC207-23 FT207 1.372
HCFT208 40 171 143.5 24 14 39 14 105 58.9 56.3 21.4 M12 HC208 FT208 1.74
HCFT 208-24 1-1/2 6-47/64 5-21/32 61/64 35/64 1-17/32 35/64 4-9/64 2-5/16 2.217 0.843 7/16 HC208-24 FT208 1.79
HCFT 208-25 1-9/16 6-47/64 5-21/32 61/64 35/64 1-17/32 35/64 4-9/64 2-5/16 2.217 0.843 7/16 HC208-25 FT208 1.75

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e i g l s b z B1 n
HCFT209 45 179 148.5 24 14 40 16 111 58.9 56.3 21.4 M14 HC209 FT209 1.94
HCFT 209-26 1-5/8 7-3/64 5-55/64 61/64 35/64 1-37/64 5/8 4-3/8 2-5//16 2.217 0.843 1/2 HC209-26 FT209 2.05
HCFT 209-27 1-11/16 7-3/64 5-55/64 61/64 35/64 1-37/64 5/8 4-3/8 2-5//16 2.217 0.843 1/2 HC209-27 FT209 2
HCFT 209-28 1-3/4 7-3/64 5-55/64 61/64 35/64 1-37/64 5/8 4-3/8 2-5//16 2.217 0.843 1/2 HC209-28 FT209 1.96
HCFT210 50 189 157 28.5 14 47 16 116 66.6 62.7 24.6 M14 HC210 FT210 2.337
HCFT 210-29 1-13/16 7-7/16 6-3/16 1-1/8 35/64 1-27/32 5/8 4-9/16 2-5/8 2.469 0.969 1/2 HC210-29 FT210 2.487
HCFT 210-30 1-7/8 7-7/16 6-3/16 1-1/8 35/64 1-27/32 5/8 4-9/16 2-5/8 2.469 0.969 1/2 HC210-30 FT210 2.427
HCFT 210-31 1-15/16 7-7/16 6-3/16 1-1/8 35/64 1-27/32 5/8 4-9/16 2-5/8 2.469 0.969 1/2 HC210-31 FT210 2.367
HCFT 210-32 2 7-7/16 6-3/16 1-1/8 35/64 1-27/32 5/8 4-9/16 2-5/8 2.469 0.969 1/2 HC210-32 FT210 2.307
HCFT211 55 216 184 32 20 50 18 133 75.6 71.4 27.8 M16 HC211 FT211 3.467
HCFT 211-32 2 8-1/2 7-1/4 1-17/64 25/32 1-31/32 45/64 5-15/64 2-31//32 2.811 1.094 5/8 HC211-32 FT211 3.767
HCFT 211-33 2-1/16 8-1/2 7-1/4 1-17/64 25/32 1-31/32 45/64 5-15/64 2-31//32 2.811 1.094 5/8 HC211-33 FT211 3.587
HCFT 211-34 2-1/8 8-1/2 7-1/4 1-17/64 25/32 1-31/32 45/64 5-15/64 2-31//32 2.811 1.094 5/8 HC211-34 FT211 3.517
HCFT 211-35 2-3/16 8-1/2 7-1/4 1-17/64 25/32 1-31/32 45/64 5-15/64 2-31//32 2.811 1.094 5/8 HC211-35 FT211 3.437
HCFT212 60 235 202 34 21 53 18 138 80.8 77.8 31 M16 HC212 FT212 4.317
HCFT 212-36 2-1/4 9-1/4 7-61/64 1-9/64 53/64 2-3/32 45/64 5-7/16 2-3/16 3.063 1.22 5/8 HC212-36 FT212 4.333
HCFT 212-37 2-5/16 9-1/4 7-61/64 1-9/64 53/64 2-3/32 45/64 5-7/16 2-3/16 3.063 1.22 5/8 HC212-37 FT212 4.387
HCFT 212-38 2-3/8 9-1/4 7-61/64 1-9/64 53/64 2-3/32 45/64 5-7/16 2-3/16 3.063 1.22 5/8 HC212-38 FT212 4.319
HCFT 212-39 2-7/16 9-1/4 7-61/64 1-9/64 53/64 2-3/32 45/64 5-7/16 2-3/16 3.063 1.22 5/8 HC212-39 FT212 4.306
HCFT213 65 248 210 38 22 56 20.5 152 89.6 85.7 34.1 M18 HC213 FT213 5.257
