Current location: Home > Pillow_blcok_bearings > SAFCT200 Series

SAFCT200 Series

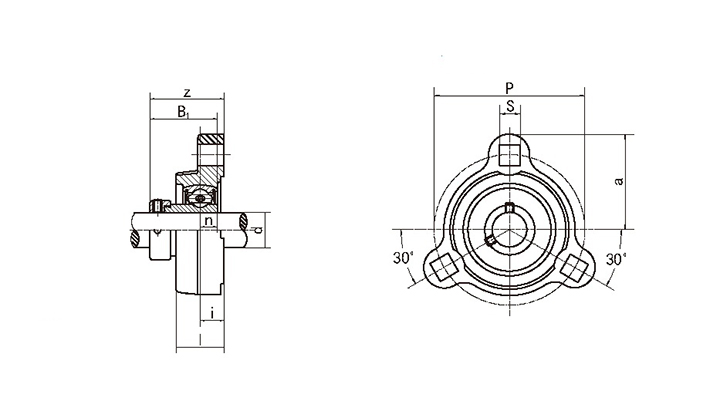

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a p i l s z B1 n
SAFCT201 12 40.5 63.5 9.8 17.5 7.2 31.9 28.6 6.5 1/4 SA201 FCT201 0.26
SAFCT201-8 1/2 1-19/32 2-1/2 25/64 11/16 9/32 1-1/4 1.126 0.2559 1/4 SA201-8 FCT201 0.26
SAFCT202 15 1-19/32 2-1/2 25/64 11/16 9/32 1-1/4 1.126 0.2559 1/4 SA202 FCT202 0.26
SAFCT202-9 9/16 1-19/32 2-1/2 25/64 11/16 9/32 1-1/4 1.126 0.2559 1/4 SA202-9 FCT202 0.26
SAFCT202-10 5/8 1-19/32 2-1/2 25/64 11/16 9/32 1-1/4 1.126 0.2559 1/4 SA202-10 FCT202 0.26
SAFCT203 17 1-19/32 2-1/2 25/64 11/16 9/32 1-1/4 1.126 0.2559 1/4 SA203 FCT203 0.26
SAFCT203-11 11/16 1-19/32 2-1/2 25/64 11/16 9/32 1-1/4 1.126 0.2559 1/4 SA203-11 FCT203 0.26
SAFCT204 20 45.3 71.5 11 20 8.7 34.5 31 7.5 5/16 SA204 FCT204 0.34
SAFCT204-12 3/4 1-25/32 2-13/16 7/16 25/32 11/32 1-23/64 1.2204 0.2953 5/16 SA204-12 FCT204 0.34
SAFCT205 25 47.5 76.2 10.3 20 8.7 33.8 31 7.5 5/16 SA205 FCT205 0.43
SAFCT205-13 13/16 1-7/8 3 13/32 25/32 11/32 1-21/64 1.2204 0.2953 5/16 SA205-13 FCT205 0.43
SAFCT205-14 7/8 1-7/8 3 13/32 25/32 11/32 1-21/64 1.2204 0.2953 5/16 SA205-14 FCT205 0.43
SAFCT205-15 15/16 1-7/8 3 13/32 25/32 11/32 1-21/64 1.2204 0.2953 5/16 SA205-15 FCT205 0.43
SAFCT205-16 1 1-7/8 3 13/32 25/32 11/32 1-21/64 1.2204 0.2953 5/16 SA205-16 FCT205 0.43
SAFCT206 30 56.5 90.5 12 22 10.3 38.7 35.7 9 3/8 SA206 FCT206 0.66
SAFCT206-17 1-1/16 2-7/32 3-9/16 15/32 7/8 13/32 1-17/32 1.4055 0.3543 3/8 SA206-17 FCT206 0.66
SAFCT206-18 1-1/8 2-7/32 3-9/16 15/32 7/8 13/32 1-17/32 1.4055 0.3543 3/8 SA206-18 FCT206 0.66
SAFCT206-19 1-3/16 2-7/32 3-9/16 15/32 7/8 13/32 1-17/32 1.4055 0.3543 3/8 SA206-19 FCT206 0.66
SAFCT206-20 1-1/4 2-7/32 3-9/16 15/32 7/8 13/32 1-17/32 1.4055 0.3543 3/8 SA206-20 FCT206 0.66
SAFCT207 35 61 100 13 24 10.3 42.4 38.9 9.5 3/8 SA207 FCT207 0.94

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a p i l s z B1 n
SAFCT207-20 1-1/4 2-13/32 3-15/16 33/64 15/16 13/32 1-43/64 1.5315 0.374 3/8 SA207-20 FCT207 0.94
SAFCT207-21 1-5/16 2-13/32 3-15/16 33/64 15/16 13/32 1-43/64 1.5315 0.374 3/8 SA207-21 FCT207 0.94
SAFCT207-22 1/3/8 2-13/32 3-15/16 33/64 15/16 13/32 1-43/64 1.5315 0.374 3/8 SA207-22 FCT207 0.94
SAFCT207-23 1-7/16 2-13/32 3-15/16 33/64 15/16 13/32 1-43/64 1.5315 0.374 3/8 SA207-23 FCT207 0.94
