SS-KFL Series

<, TD style="BOX-SIZING: border-box; BORDER-BOTTOM: rgb(221,221,221) 1px solid; BORDER-LEFT: rgb(221,221,221) 1px solid; PADDING-BOTTOM: 8px; LINE-HEIGHT: 1.4285; PADDING-LEFT: 8px; PADDING-RIGHT: 8px; VERTICAL-ALIGN: top; BORDER-TOP: rgb(221,221,221) 1px solid; BORDER-RIGHT: rgb(221,221,221) 1px solid; PADDING-TOP: 8px; border-radius: 0px" noWrap>0.13

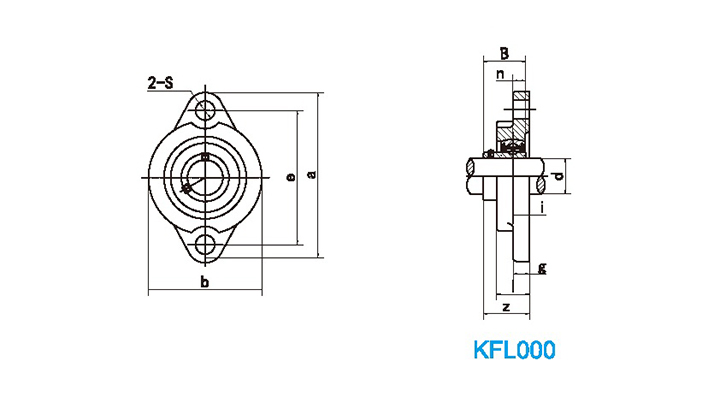

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
Unit NO.	d	a	e	i	g	l	S	b	Z	B	n	Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
SS-KFL000	10	60	45	5.5	5.5	11.5	7	36	15.5	14	4	M6	SS-K000	FL000	0.06
SS-KFL000	10	2-23/64	1-25/35	7/32	7/32	29/64	9/32	1-27/64	39/64	0.551	0.157	M6	SS-K000	FL000	0.06
SS-KFL001	12	63	48	5.5	5.5	11.5	7	38	16	14.5	4	M6	SS-K001	FL001	0.07
SS-KFL001	12	2-31/64	1-57/64	7/32	7/32	29/64	9/32	1-1/2	5/8	0.571	0.157	M6	SS-K001	FL001	0.07
SS-KFL002	15	67	53	6.5	6.5	13	7	42	18.6	16.5	4.5	M6	SS-K002	FL002	0.1
SS-KFL002	15	2-41/64	2-3/32	1/4	1/4	33/64	9/32	1-21/32	47/64	0.65	0.177	M6	SS-K002	FL002	0.1
SS-KFL003	17	71	56	7	7	14	7	46	19.5	17.5	5	M6	SS-K003	FL003
SS-KFL003	17	2-51/64	2-13/64	9/32	9/32	35/64	9/32	1-13/16	49/64	0.689	0.197	M6	SS-K003	FL003	0.13
SS-KFL004	20	90	71	8	8	16	10	55	23	21	6	M8	SS-K004	FL04-5	0.2
SS-KFL004	20	3-35/64	2-51/64	5/16	5/16	5/8	25/64	2-11/64	29/32	0.827	0.236	M8	SS-K004	FL04-5	0.2
SS-KFL005	25	95	75	8	8	16	10	60	24.5	22.5	6.5	M8	SS-K005	FL05-6	0.25
SS-KFL005	25	3-47/64	2-61/64	5/16	5/16	5/8	25/64	2-3/8	31/32	0.886	0.256	M8	SS-K005	FL05-6	0.25
SS-KFL006	30	112	85	9	9	18	13	70	27	24.5	6.5	M10	SS-K006	FL06-7	0.35
SS-KFL006	30	4-13/32	3-11/32	23/64	23/64	23/32	33/64	2-3/4	1-1/6	0.965	0.256	M10	SS-K006	FL06-7	0.35
