Current location: Home > Pillow_blcok_bearings > SS-UCHA200 Series

SS-UCHA200 Series

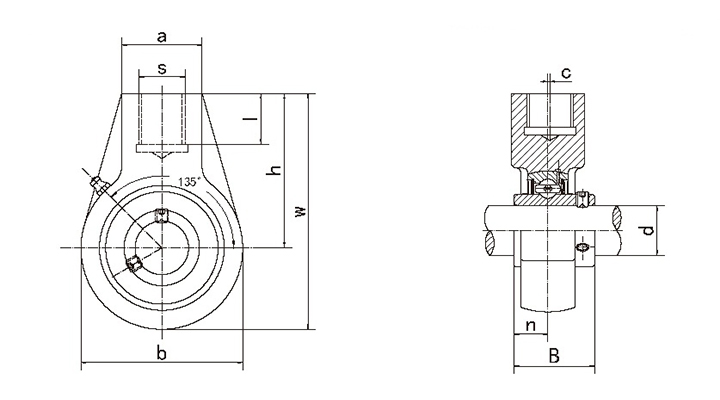

Unit NO. Dimensions(mm/in.) Bearing NO. Housing NO. Weight(kg)
d h w b c a s l B n
SS-UCHA201 12 64 96 64 0 40 G-3/4 19 31 12.7 SS-UC201 HA201 0.637
SS-UCHA 201-8 1/2 2-33/64 3-25/32 2-33/64 0 1-37/64 G-3/4 3/4 1.2205 0.5 SS-UC201-8 HA201 0.627
SS-UCHA202 15 64 96 64 0 40 G-3/4 19 31 12.7 SS-UC202 HA202 0.627
SS-UCHA 202-9 9/16 2-33/64 3-25/32 2-33/64 0 1-37/64 G-3/4 3/4 1.2205 0.5 SS-UC202-9 HA202 0.627
SS-UCHA 202-10 5/8 2-33/64 3-25/32 2-33/64 0 1-37/64 G-3/4 3/4 1.2205 0.5 SS-UC202-10 HA202 0.627
SS-UCHA203 17 64 96 64 0 40 G-3/4 19 31 12.7 SS-UC203 HA203 0.617
SS-UCHA 203-11 11/16 2-33/64 3-25/32 2-33/64 0 1-37/64 G-3/4 3/4 1.2205 0.5 SS-UC203-11 HA203 0.607
SS-UCHA204 20 64 96 64 0 40 G-3/4 19 31 12.7 SS-UC204 HA204 0.596
SS-UCHA 204-12 3/4 2-33/64 3-25/32 2-33/64 0 1-37/64 G-3/4 3/4 1.2205 0.5 SS-UC204-12 HA204 0.596
SS-UCHA205 25 64 103 78 0 40 G-3/4 19 34.1 14.3 SS-UC205 HA205 0.794
SS-UCHA 205-13 13/16 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.3425 0.563 SS-UC205-13 HA205 0.831
SS-UCHA 205-14 7/8 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.3425 0.563 SS-UC205-14 HA205 0.821
SS-UCHA 205-15 15/16 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.3425 0.563 SS-UC205-15 HA205 0.801
SS-UCHA 205-16 1 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.3425 0.563 SS-UC205-16 HA205 0.791
SS-UCHA206 30 64 103 78 0 40 G-3/4 19 38.1 15.9 SS-UC206 HA206 0.778
SS-UCHA 206-17 1-1/16 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.5 0.626 SS-UC206-17 HA206 0.788
SS-UCHA 206-18 1-1/8 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.5 0.626 SS-UC206-18 HA206 0.798
SS-UCHA 206-19 1-3/16 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.5 0.626 SS-UC206-19 HA206 0.778
SS-UCHA 206-20 1-1/4 2-33/64 4-1/16 3-5/64 0 1-37/64 G-3/4 3/4 1.5 0.626 SS-UC206-20 HA206 0.768
SS-UCHA207 35 70 116 92 0 40 G-3/4 19 42.9 17.5 SS-UC207 HA207 1.099

Unit NO. Dimensions(mm/in.) Bearing NO. Housing NO. Weight(kg)
d h w b c a s l B n
SS-UCHA 207-20 1-1/4 2-3/4 4-9/16 3-5/8 0 1-37/64 G-3/4 3/4 1.689 0.689 SS-UC207-20 HA207 1.164
SS-UCHA 207-21 1-5/16 2-3/4 4-9/16 3-5/8 0 1-37/64 G-3/4 3/4 1.689 0.689 SS-UC207-21 HA207 1.134
SS-UCHA 207-22 1-3/8 2-3/4 4-9/16 3-5/8 0 1-37/64 G-3/4 3/4 1.689 0.689 SS-UC207-22 HA207 1.104
SS-UCHA 207-23 1-7/16 2-3/4 4-9/16 3-5/8 0 1-37/64 G-3/4 3/4 1.689 0.689 SS-UC207-23 HA207 1.074
SS-UCHA208 40 73 121 96 2 40 G-3/4 19 49.2 19 SS-UC208 HA208 1.218
SS-UCHA 208-24 1-1/2 2-7/8 4-49/64 3-25/32 5-64 1-37/64 G-3/4 3/4 1.937 0.748 SS-UC208-24 HA208 1.258
SS-UCHA 208-25 1-9/16 2-7/8 4-49/64 3-25/32 5-64 1-37/64 G-3/4 3/4 1.937 0.748 SS-UC208-25 HA208 1.228
SS-UCHA209 45 82 136 108 5 48 G1 21 49.2 19 SS-UC209 HA209 1.714
SS-UCHA 209-26 1-5/8 3-15/64 5-23/64 4-1/4 13/64 1-57/64 G1 53/64 1.937 0.748 SS-UC209-26 HA209 1.814
SS-UCHA 209-27 1-11/16 3-15/64 5-23/64 4-1/4 13/64 1-57/64 G1 53/64 1.937 0.748 SS-UC209-27 HA209 1.774
SS-UCHA 209-28 1-3/4 3-15/64 5-23/64 4-1/4 13/64 1-57/64 G1 53/64 1.937 0.748 SS-UC209-28 HA209 1.734
SS-UCHA210 50 83 142 118 5 48 G1 21 51.6 19 SS-UC210 HA210 2.04
SS-UCHA 210-29 1-13/16 3-17/64 5-19/32 4-41/64 13/64 1-57/64 G1 53/64 2.0315 0.748 SS-UC210-29 HA210 2.16
SS-UCHA 210-30 1-7/8 3-17/64 5-19/32 4-41/64 13/64 1-57/64 G1 53/64 2.0315 0.748 SS-UC210-30 HA210 2.11
SS-UCHA 210-31 1-15/16 3-17/64 5-19/32 4-41/64 13/64 1-57/64 G1 53/64 2.0315 0.748 SS-UC210-31 HA210 2.06
SS-UCHA 210-32 2 3-17/64 5-19/32 4-41/64 13/64 1-57/64 G1 53/64 2.0315 0.748 SS-UC210-32 HA210 2.02
SS-UCHA211 55 87 150 126 7 60 G1-1/4 25 55.6 22.2 SS-UC211 HA211 2.447
SS-UCHA 211-32 2 3-27/64 5-29/32 4-61/64 9/32 2-23/64 G1-1/4 63/64 2.189 0.874 SS-UC211-32 HA211 2.597
SS-UCHA 211-33 2-1/16 3-27/64 5-29/32 4-61/64 9/32 2-23/64 G1-1/4 63/64 2.189 0.874 SS-UC211-33 HA211 2.537
SS-UCHA 211-34 2-1/8 3-27/64 5-29/32 4-61/64 9/32 2-23/64 G1-1/4 63/64 2.189 0.874 SS-UC211-34 HA211 2.497
