SS-UCPAPL200 Series

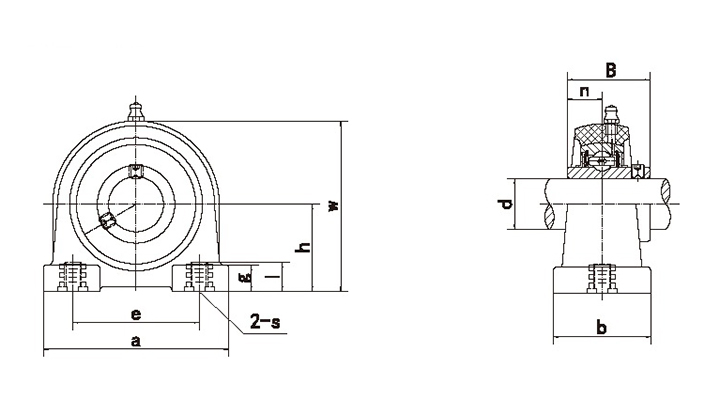

Unit NO.	Dimensions(mm/in.)											Max.Torqu		Bearing NO.	Housing NO.	Weight(kg)
Unit NO.	d	h	a	e	b	s	l	g	w	B	n	Bolt D	Nm	Bearing NO.	Housing NO.	Weight(kg)
SS-UCPAPL204	20	30.2	76	52	40	M8	15	11	62	31	12.7	M8	18	SS-UC204	PAPL204	0.55
SS-UCPAPL204	3/4	1-3/16	3	2-3/64	1-9/16	M8	19/32	7/16	2-7/16	1.221	0.5	M8	18	SS-UC204	PAPL204	0.55
SS-UCPAPL205	25	36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	25	SS-UC205	PAPL205	0.61
SS-UCPAPL205	13/16 ; 7/8 ; 15/16 ; 1	1-7/16	3-5/16	2-13/64	1-1/2	M10	19/32	15/32	2-53/64	1.343	0.563	M10	25	SS-UC205	PAPL205	0.61
SS-UCPAPL206	30	42.9	94	66	50	M10	18	12	84	38.1	15.9	M10	30	SS-UC206	PAPL206	0.89
SS-UCPAPL206	1-1/16 ; 1-1/8 ; 1-3/16 ; 1-1/4	1-11/16	3-45/64	2-19/32	1-31/32	M10	45/64	15/32	3-5/16	1.5	0.626	M10	30	SS-UC206	PAPL206	0.89
SS-UCPAPL207	35	47.6	110	80	55	M10	20	13	95	42.9	17.5	M10	35	SS-UC207	PAPL207	1.31
SS-UCPAPL207	1-1/4 ; 1-5/16 ; 1-3/8 ; 1-7/16	1-7/8	4-21/64	3-5/32	2-11/64	M10	25/32	33/64	3-47/64	1.689	0.689	M10	35	SS-UC207	PAPL207	1.31
SS-UCPAPL208	40	49.2	116	84	58	M12	20	13	100	49.2	19	M12	40	SS-UC208	PAPL208	1.56
SS-UCPAPL208	1-1/2 ; 1-9/16	1-15/16	4-9/16	3-5/16	2-9/32	M12	25/32	33/64	3-15/16	1.937	0.748	M12	40	SS-UC208	PAPL208	1.56
SS-UCPAPL209	45	54.2	120	90	60	M12	25	13	108	49.2	19	M12	45	SS-UC209	PAPL209	1.7
SS-UCPAPL209	1-5/8 ; 1-11/16 ; 1-3/4	2-9/64	4-23/32	3-35/64	2-23/64	M12	63/64	33/64	4-1/4	1.937	0.748	M12	45	SS-UC209	PAPL209	1.7
SS-UCPAPL210	50	57.2	130	94	64	M16	25	14	116	51.6	19	M16	50	SS-UC210	PAPL210	1.93
SS-UCPAPL210	1-13/16 ; 1-7/8 ; 1-15/16 ; 2	2-1/4	5-1/8	3-45/64	2-33/64	M16	63/64	35/64	4-9/16	2.032	0.748	M16	50	SS-UC210	PAPL210	1.93
SS-UCPAPL211	55	63.5	140	104	66	M16	25	14	125	55.6	22.2	M16	55	SS-UC211	PAPL211	2.33
SS-UCPAPL211	2 ; 2-1/16 ; 2-1/8 ; 2-3/16	2-1/2	5-33/64	4-3/32	2-19/32	M16	63/64	35/64	4-59/64	2.189	0.874	M16	55	SS-UC211	PAPL211	2.33
SS-UCPAPL212	60	69.9	150	114	68	M16	25	15	138	65.1	25.4	M16	60	SS-UC212	PAPL212	2.9
SS-UCPAPL212	2-1/4 ; 2-5/16 ; 2-3/8 ; 2-7/16	2-3/4	5-29/32	4-31/64	2-43/64	M16	63/64	19/32	5-7/16	2.563	1	M16	60	SS-UC212	PAPL212	2.9
