| Current location: Home > Pillow_blcok_bearings > SACSLT100 |
| Unit NO. |

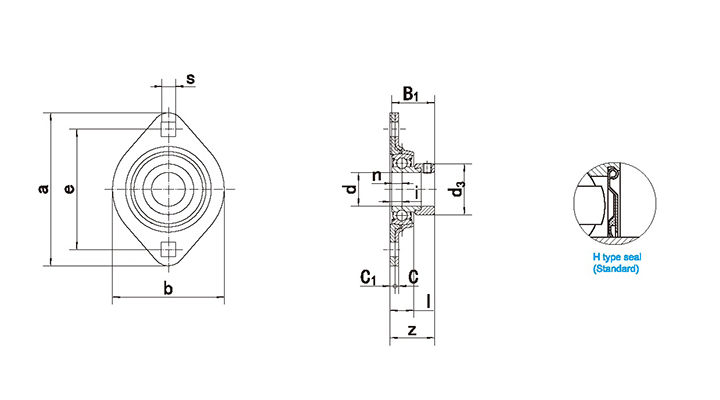

Dimensions(mm/in.) |
Bolt Size mm/in. |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
e |
b |
C1 |
C |
i |
l |
s |
z |
B1 |
n |
d3 |
| SACSLT104 |
20 |
90.5 |
71.5 |
66 |
3 |
2 |
7.5 |
14 |
8.7 |
26.1 |
24.6 |
6 |
30 |
M8 |
SA104 |
CSLT104 |
0.22 |
| SACSLT 104-12 |
3/4 |
3-9/16 |
2-13/16 |
2-19/32 |
1/8 |
5/64 |
19/64 |
35/64 |
11/32 |
1-1/32 |
0.968 |
0.236 |
1.18 |
5/16 |
SA104-12 |
CSLT104 |
0.22 |
| SACSLT105 |
25 |
95.2 |
76.2 |
71 |
3 |
2 |
8.5 |
16 |
8.7 |
28 |
25.4 |
6 |
36 |
M8 |
SA105 |
CSLT105 |
0.25 |
| SACSLT 105-13 |
13/16 |
3-3/4 |
3 |
2-51/64 |
1/8 |
5/64 |
21/64 |
5/8 |
11/32 |
1-7/64 |
1 |
0.236 |
1.417 |
5/16 |
SA105-13 |
CSLT105 |
0.25 |
| SACSLT 105-14 |
7/8 |
3-3/4 |
3 |
2-51/64 |
1/8 |
5/64 |
21/64 |
5/8 |
11/32 |
1-7/64 |
1 |
0.236 |
1.417 |
5/16 |
SA105-14 |
CSLT105 |
0.25 |
| SACSLT 105-15 |
15/16 |
3-3/4 |
3 |
2-51/64 |
1/8 |
5/64 |
21/64 |
5/8 |
11/32 |
1-7/64 |
1 |
0.236 |
1.417 |
5/16 |
SA105-15 |
CSLT105 |
0.25 |
| SACSLT 105-16 |
1 |
3-3/4 |
3 |
2-51/64 |
1/8 |
5/64 |
21/64 |
5/8 |
11/32 |
1-7/64 |
1 |
0.236 |
1.417 |
5/16 |
SA105-16 |
CSLT105 |
0.25 |
| SACSLT106 |
30 |
112.5 |
90.5 |
84 |
3.5 |
2.5 |
9 |
16 |
11.5 |
28.7 |
26.2 |
6.5 |
42.5 |
M10 |
SA106 |
CSLT106 |
0.3 |
| SACSLT 106-17 |
1-1/16 |
4-27/64 |
3-9/16 |
3-5/16 |
9/64 |
3/32 |
23/64 |
5/8 |
29/64 |
1-1/8 |
1.031 |
0.256 |
1.673 |
3/8 |
SA106-17 |
CSLT106 |
0.3 |
| SACSLT 106-18 |
1-1/8 |
4-27/64 |
3-9/16 |
3-5/16 |
9/64 |
3/32 |
23/64 |
5/8 |
29/64 |
1-1/8 |
1.031 |
0.256 |
1.673 |
3/8 |
SA106-18 |
CSLT106 |
0.3 |
| SACSLT 106-19 |
1-3/16 |
4-27/64 |
3-9/16 |
3-5/16 |
9/64 |
3/32 |
23/64 |
5/8 |
29/64 |
1-1/8 |
1.031 |
0.256 |
1.673 |
3/8 |
SA106-19 |
CSLT106 |
0.3 |
|
|
|
