| Current location: Home > Pillow_blcok_bearings > SBPFT200 Series |
| Unit NO. |

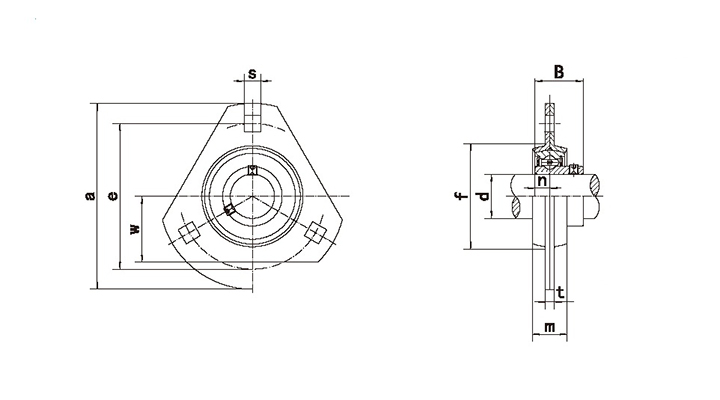

Dimensions(mm/in.) |
Bolt Size mm/in. |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
e |
b |
m |
S |
t |
f(min) |
B |
n |
| SBPFT201 |
12 |
81 |
63.5 |
28.5 |
14 |
7.1 |
4 |
49 |
22 |
6 |
M6 |
SB201 |
PFT204 |
0.23 |
| SBPFT201-8 |
1/2 |
3-3/16 |
2-1/2 |
1-1/8 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB201-8 |
PFT204 |
0.23 |
| SBPFT202 |
15 |
3-3/16 |
2-1/2 |
1-1/8 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB202 |
PFT204 |
0.23 |
| SBPFT202-9 |
9/16 |
3-3/16 |
2-1/2 |
1-1/8 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB202-9 |
PFT204 |
0.23 |
| SBPFT202-10 |
5/8 |
3-3/16 |
2-1/2 |
1-1/8 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB202-10 |
PFT204 |
0.23 |
| SBPFT203 |
17 |
3-3/16 |
2-1/2 |
1-1/8 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB203 |
PFT204 |
0.23 |
| SBPFT203-11 |
11/16 |
3-3/16 |
2-1/2 |
1-1/8 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB203-11 |
PFT204 |
0.23 |
| SBPFT204 |
20 |
90 |
71.5 |
33 |
16 |
9 |
4 |
56 |
25 |
7 |
M8 |
SB204 |
PFT204 |
0.24 |
| SBPFT204-12 |
3/4 |
3-35/64 |
2-13/16 |
1-19/64 |
5/8 |
23/64 |
0.157 |
2-13/64 |
0.9843 |
0.2756 |
5/16 |
SB204-12 |
PFT204 |
0.24 |
| SBPFT205 |
25 |
95 |
76 |
35 |
18 |
9 |
4 |
60 |
27 |
7.5 |
M8 |
SB205 |
PFT205 |
0.28 |
| SBPFT205-13 |
13/16 |
3-3/4 |
2-63/64 |
1-3/8 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-13 |
PFT205 |
0.28 |
| SBPFT205-14 |
7/8 |
3-3/4 |
2-63/64 |
1-3/8 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-14 |
PFT205 |
0.28 |
| SBPFT205-15 |
15/16 |
3-3/4 |
2-63/64 |
1-3/8 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-15 |
PFT205 |
0.28 |
| SBPFT205-16 |
1 |
3-3/4 |
2-63/64 |
1-3/8 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-16 |
PFT205 |
0.28 |
| SBPFT206 |
30 |
113 |
90.5 |
40 |
18 |
11 |
5.2 |
71 |
30 |
8 |
M10 |
SB206 |
PFT206 |
0.44 |
| SBPFT206-17 |
1-1/16 |
4-7/16 |
3-9/16 |
1-37/64 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-17 |
PFT206 |
0.44 |
| SBPFT206-18 |
1-1/8 |
4-7/16 |
3-9/16 |
1-37/64 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-18 |
PFT206 |
0.44 |
| SBPFT206-19 |
1-3/16 |
4-7/16 |
3-9/16 |
1-37/64 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-19 |
PFT206 |
0.44 |
| SBPFT206-20 |
1-1/4 |
4-7/16 |
3-9/16 |
1-37/64 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-20 |
PFT206 |
0.44 |
| SBPFT207 |
35 |
122 |
100 |
44.5 |
20 |
11 |
5.2 |
81 |
32 |
8.5 |
M10 |
SB207 |
PFT207 |
0.58 |
| Unit NO. |
Dimensions(mm/in.) |
Bolt Size mm/in. |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
e |
b |
m |
S |
t |
f(min) |
B |
n |
| SBPFT207-20 |
1-1/4 |
4-13/16 |
3-15/16 |
1-3/4 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-20 |
PFT207 |
0.58 |
| SBPFT207-21 |
1-5/16 |
4-13/16 |
3-15/16 |
1-3/4 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-21 |
PFT207 |
0.58 |
| SBPFT207-22 |
1-3/8 |
4-13/16 |
3-15/16 |
1-3/4 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-22 |
PFT207 |
0.58 |
| SBPFT207-23 |
1-7/16 |
4-13/16 |
3-15/16 |
1-3/4 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-23 |
PFT207 |
0.58 |
|
|
|
