| Current location: Home > Pillow_blcok_bearings > SBPFL200 Series |
| Unit NO. |

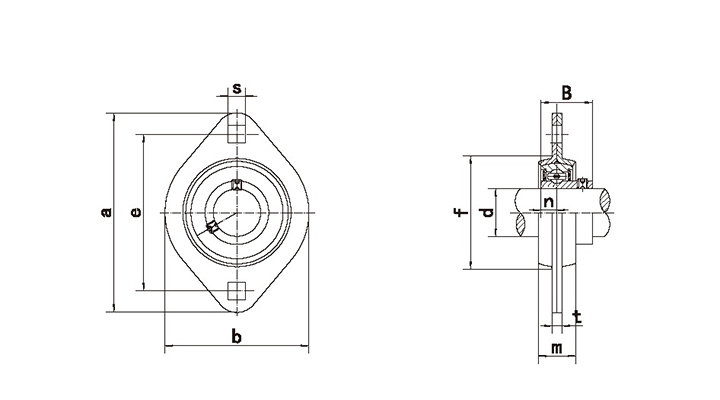

Dimensions(mm/in.) |
Bolt Size mm/in. |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
e |
b |
m |
S |
t |
f(min) |
B |
n |
| SBPFL201 |
12 |
81 |
63.5 |
59 |
14 |
7.1 |
4 |
49 |
22 |
6 |
M6 |
SB201 |
PFL204 |
0.18 |
| SBPFL201-8 |
1/2 |
3-3/16 |
2-1/2 |
2-21/64 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB201-8 |
PFL204 |
0.18 |
| SBPFL202 |
15 |
3-3/16 |
2-1/2 |
2-21/64 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB202 |
PFL204 |
0.18 |
| SBPFL202-9 |
9/16 |
3-3/16 |
2-1/2 |
2-21/64 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB202-9 |
PFL204 |
0.18 |
| SBPFL202-10 |
5/8 |
3-3/16 |
2-1/2 |
2-21/64 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB202-10 |
PFL204 |
0.18 |
| SBPFL203 |
17 |
3-3/16 |
2-1/2 |
2-21/64 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB203 |
PFL204 |
0.18 |
| SBPFL203-11 |
11/16 |
3-3/16 |
2-1/2 |
2-21/64 |
9/16 |
9/32 |
0.157 |
1-59/64 |
0.8661 |
0.2362 |
1/4 |
SB203-11 |
PFL204 |
0.18 |
| SBPFL204 |
20 |
90 |
71.5 |
67 |
16 |
9 |
4 |
56 |
25 |
7 |
M8 |
SB204 |
PFL204 |
0.22 |
| SBPFL204-12 |
3/4 |
3-35/64 |
2-13/16 |
2-41/64 |
5/8 |
23/64 |
0.157 |
2-13/64 |
0.9843 |
0.2756 |
5/16 |
SB204-12 |
PFL204 |
0.22 |
| SBPFL205 |
25 |
95 |
76 |
71 |
18 |
9 |
4 |
60 |
27 |
7.5 |
M8 |
SB205 |
PFL205 |
0.25 |
| SBPFL205-13 |
13/16 |
3-3/4 |
2-63/64 |
2-51/64 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-13 |
PFL205 |
0.25 |
| SBPFL205-14 |
7/8 |
3-3/4 |
2-63/64 |
2-51/64 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-14 |
PFL205 |
0.25 |
| SBPFL205-15 |
15/16 |
3-3/4 |
2-63/64 |
2-51/64 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-15 |
PFL205 |
0.25 |
| SBPFL205-16 |
1 |
3-3/4 |
2-63/64 |
2-51/64 |
23/32 |
23/64 |
0.157 |
2-23/64 |
1.063 |
0.2953 |
5/16 |
SB205-16 |
PFL205 |
0.25 |
| SBPFL206 |
30 |
113 |
90.5 |
84 |
18 |
11 |
5.2 |
71 |
30 |
8 |
M10 |
SB206 |
PFL206 |
0.4 |
| SBPFL206-17 |
1-1/16 |
4-7/16 |
3-9/16 |
3-5/16 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-17 |
PFL206 |
0.4 |
| SBPFL206-18 |
1-1/8 |
4-7/16 |
3-9/16 |
3-5/16 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-18 |
PFL206 |
0.4 |
| SBPFL206-19 |
1-3/16 |
4-7/16 |
3-9/16 |
3-5/16 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-19 |
PFL206 |
0.4 |
| SBPFL206-20 |
1-1/4 |
4-7/16 |
3-9/16 |
3-5/16 |
23/32 |
7/16 |
0.205 |
2-51/64 |
1.1811 |
0.315 |
3/8 |
SB206-20 |
PFL206 |
0.4 |
| SBPFL207 |
35 |
122 |
100 |
94 |
20 |
11 |
5.2 |
81 |
32 |
8.5 |
M10 |
SB207 |
PFL207 |
0.53 |
| Unit NO. |
Dimensions(mm/in.) |
Bolt Size mm/in. |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
e |
b |
m |
S |
t |
f(min) |
B |
n |
| SBPFL207-20 |
1-1/4 |
4-13/16 |
3-15/16 |
3-45/64 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-20 |
PFL207 |
0.53 |
| SBPFL207-21 |
1-5/16 |
4-13/16 |
3-15/16 |
3-45/64 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-21 |
PFL207 |
0.53 |
| SBPFL207-22 |
1-3/8 |
4-13/16 |
3-15/16 |
3-45/64 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-22 |
PFL207 |
0.53 |
| SBPFL207-23 |
1-7/16 |
4-13/16 |
3-15/16 |
3-45/64 |
25/32 |
7/16 |
0.205 |
3-3/16 |
1.2598 |
0.3346 |
3/8 |
SB207-23 |
PFL207 |
0.53 |
| SBPFL208 |
40 |
148 |
119 |
100 |
21 |
13.5 |
6.8 |
91 |
34 |
9 |
M12 |
SB208 |
PFL208 |
0.75 |
| SBPFL208-24 |
1-1/2 |
5-13/16 |
4-11/16 |
3-15/16 |
13/16 |
17/32 |
0.268 |
3-37/64 |
1.3386 |
0.3543 |
1/2 |
SB208-24 |
PFL208 |
0.75 |
| SBPFL208-25 |
1-9/16 |
5-13/16 |
4-11/16 |
3-15/16 |
13/16 |
17/32 |
0.268 |
3-37/64 |
1.3386 |
0.3543 |
1/2 |
SB208-25 |
PFL208 |
0.75 |
|
|
|
