Current location: Home > Pillow_blcok_bearings > SAPF200 Series

SAPF200 Series

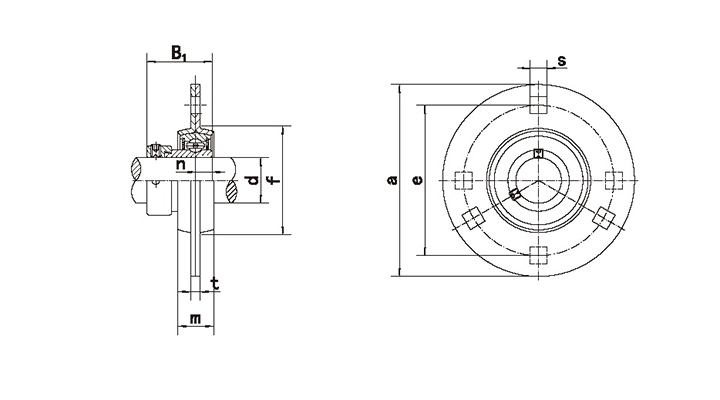

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e m s f B1 n
SAPF201 12 81 63.5 14 7.1 49 28.6 6.5 M6 SA201 PF204 0.3
SAPF201-8 1/2 3-3/16 2-1/2 9/16 9/32 1-59/64 1.126 0.2559 1/4 SA201-8 PF204 0.3
SAPF202 15 3-3/16 2-1/2 9/16 9/32 1-59/64 1.126 0.2559 1/4 SA202 PF204 0.3
SAPF202-9 9/16 3-3/16 2-1/2 9/16 9/32 1-59/64 1.126 0.2559 1/4 SA202-9 PF204 0.3
SAPF202-10 5/8 3-3/16 2-1/2 9/16 9/32 1-59/64 1.126 0.2559 1/4 SA202-10 PF204 0.3
SAPF203 17 3-3/16 2-1/2 9/16 9/32 1-59/64 1.126 0.2559 1/4 SA203 PF204 0.3
SAPF203-11 11/16 3-3/16 2-1/2 9/16 9/32 1-59/64 1.126 0.2559 1/4 SA203-11 PF204 0.3
SAPF204 20 90 71.5 16 9 56 31 7.5 M8 SA204 PF204 0.33
SAPF204-12 3/4 3-35/64 2-13/16 5/8 23/64 2-13/64 1.2204 0.2953 5/16 SA204-12 PF204 0.33
SAPF205 25 95 76 18 9 60 31 7.5 M8 SA205 PF205 0.37
SAPF205-13 13/16 3-3/4 2-63/64 23/32 23/64 2-23/64 1.2204 0.2953 5/16 SA205-13 PF205 0.37
SAPF205-14 7/8 3-3/4 2-63/64 23/32 23/64 2-23/64 1.2204 0.2953 5/16 SA205-14 PF205 0.37
SAPF205-15 15/16 3-3/4 2-63/64 23/32 23/64 2-23/64 1.2204 0.2953 5/16 SA205-15 PF205 0.37
SAPF205-16 1 3-3/4 2-63/64 23/32 23/64 2-23/64 1.2204 0.2953 5/16 SA205-16 PF205 0.37
SAPF206 30 113 90.5 18 11 71 35.7 9 M10 SA206 PF206 0.6
SAPF206-17 1-1/16 4-7/16 3-9/16 23/32 7/16 2-51/64 1.4055 0.3543 3/8 SA206-17 PF206 0.6
SAPF206-18 1-1/8 4-7/16 3-9/16 23/32 7/16 2-51/64 1.4055 0.3543 3/8 SA206-18 PF206 0.6
SAPF206-19 1-3/16 4-7/16 3-9/16 23/32 7/16 2-51/64 1.4055 0.3543 3/8 SA206-19 PF206 0.6
SAPF206-20 1-1/4 4-7/16 3-9/16 23/32 7/16 2-51/64 1.4055 0.3543 3/8 SA206-20 PF206 0.6
SAPF207 35 122 100 20 11 81 38.9 9.5 M10 SA207 PF207 0.8

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e m s f B1 n
SAPF207-20 1-1/4 4-13/16 3-15/16 25/32 7/16 3-3/16 1.5315 0.374 3/8 SA207-20 PF207 0.8
SAPF207-21 1-5/16 4-13/16 3-15/16 25/32 7/16 3-3/16 1.5315 0.374 3/8 SA207-21 PF207 0.8
SAPF207-22 1-3/8 4-13/16 3-15/16 25/32 7/16 3-3/16 1.5315 0.374 3/8 SA207-22 PF207 0.8
SAPF207-23 1-7/16 4-13/16 3-15/16 25/32 7/16 3-3/16 1.5315 0.374 3/8 SA207-23 PF207 0.8
SAPF208 40 148 119 21 13.5 91 43.7 11 M12 SA208 PF208 1.3
SAPF208-24 1-1/2 5-13/16 4-11/16 13/16 17/32 3-37/64 1.7205 0.433 1/2 SA208-24 PF208 1.3
SAPF208-25 1-9/16 5-13/16 4-11/16 13/16 17/32 3-37/64 1.7205 0.433 1/2 SA208-25 PF208 1.3
SAPF209 45 150 120.5 23 13.5 98 43.7 11 M12 SA209 PF209 1.31
SAPF209-26 1-5/8 5-29/32 4-3/4 29/32 17/32 3-55/64 1.7205 0.433 1/2 SA209-26 PF209 1.31
SAPF209-27 1-11/16 5-29/32 4-3/4 29/32 17/32 3-55/64 1.7205 0.433 1/2 SA209-27 PF209 1.31
SAPF209-28 1-3/4 5-29/32 4-3/4 29/32 17/32 3-55/64 1.7205 0.433 1/2 SA209-28 PF209 1.31
SAPF210 50 157 127 25 13.5 102 43.7 11 M12 SA210 PF210 1.59
SAPF210-29 1-13/16 6-3/16 5 63/64 17/32 4-1/64 1.7205 0.433 1/2 SA210-29 PF210 1.59
SAPF210-30 1-7/8 6-3/16 5 63/64 17/32 4-1/64 1.7205 0.433 1/2 SA210-30 PF210 1.59
SAPF210-31 1-15/16 6-3/16 5 63/64 17/32 4-1/64 1.7205 0.433 1/2 SA210-31 PF210 1.59
SAPF210-32 2 6-3/16 5 63/64 17/32 4-1/64 1.7205 0.433 1/2 SA210-32 PF210 1.59
SAPF211 55 168 138 26 13.5 113 48.4 12 M12 SA211 PF211 1.95
SAPF211-32 2 6-5/8 5-7/16 1-1/64 17/32 4-29/64 1.9055 0.472 1/2 SA211-32 PF211 1.95
SAPF211-33 2-1/16 6-5/8 5-7/16 1-1/64 17/32 4-29/64 1.9055 0.472 1/2 SA211-33 PF211 1.95
SAPF211-34 2-1/8 6-5/8 5-7/16 1-1/64 17/32 4-29/64 1.9055 0.472 1/2 SA211-34 PF211 1.95
