Current location: Home > Pillow_blcok_bearings > SBPP200 Series

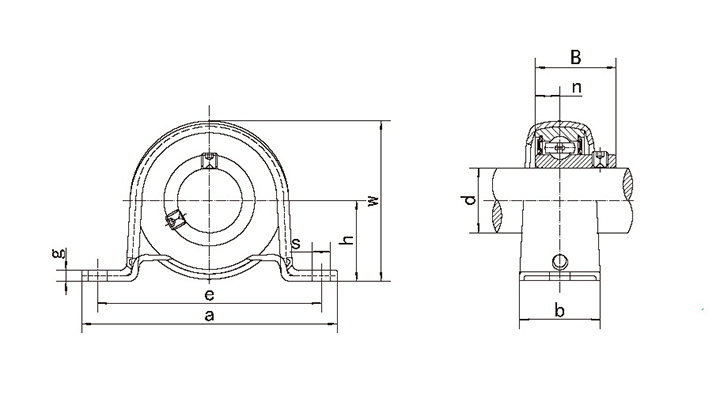

SBPP200 Series



Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d h a e b s g w B n
SBPP201 12 22.2 86 68 25 9.5 3.2 43.8 22 6 M8 SB201 PP204 0.14
SBPP201-8 1/2 7/8 3-3/8 2-43/64 63/64 3/8 0.126 1-23/32 0.8661 0.2362 15/16 SB201-8 PP204 0.14
SBPP202 15 7/8 3-3/8 2-43/64 63/64 3/8 0.126 1-23/32 0.8661 0.2362 15/16 SB202 PP204 0.14
SBPP202-9 9/16 7/8 3-3/8 2-43/64 63/64 3/8 0.126 1-23/32 0.8661 0.2362 15/16 SB202-9 PP204 0.14
SBPP202-10 5/8 7/8 3-3/8 2-43/64 63/64 3/8 0.126 1-23/32 0.8661 0.2362 15/16 SB202-10 PP204 0.14
SBPP203 17 7/8 3-3/8 2-43/64 63/64 3/8 0.126 1-23/32 0.8661 0.2362 15/16 SB203 PP204 0.14
SBPP203-11 11/16 7/8 3-3/8 2-43/64 63/64 3/8 0.126 1-23/32 0.8661 0.2362 15/16 SB203-11 PP204 0.14
SBPP204 20 25.4 98 76 32 9.5 3.2 50.5 25 7 M8 SB204 PP204 0.22
SBPP204-12 3/4 1 3-27/32 2-63/64 1-1/4 3/8 0.126 1-63/64 0.9843 0.2756 5/16 SB204-12 PP204 0.22
SBPP205 25 28.6 108 86 32 11.5 4 56.6 27 7.5 M10 SB205 PP205 0.28
SBPP205-13 13/16 1-1/8 4-1/4 3-25/64 1-1/4 29/64 0.157 2-15/64 1.063 0.2953 3/8 SB205-13 PP205 0.28
SBPP205-14 7/8 1-1/8 4-1/4 3-25/64 1-1/4 29/64 0.157 2-15/64 1.063 0.2953 3/8 SB205-14 PP205 0.28
SBPP205-15 15/16 1-1/8 4-1/4 3-25/64 1-1/4 29/64 0.157 2-15/64 1.063 0.2953 3/8 SB205-15 PP205 0.28
SBPP205-16 1 1-1/8 4-1/4 3-25/64 1-1/4 29/64 0.157 2-15/64 1.063 0.2953 3/8 SB205-16 PP205 0.28
SBPP206 30 33.3 117 95 38 11.5 4 66.3 30 8 M10 SB206 PP206 0.42
SBPP206-17 1-1/16 1-5/16 4-39/64 3-47/64 1-1/2 29/64 0.157 2-39/64 1.1811 0.315 3/8 SB206-17 PP206 0.42
SBPP206-18 1-1/8 1-5/16 4-39/64 3-47/64 1-1/2 29/64 0.157 2-39/64 1.1811 0.315 3/8 SB206-18 PP206 0.42
SBPP206-19 1-3/16 1-5/16 4-39/64 3-47/64 1-1/2 29/64 0.157 2-39/64 1.1811 0.315 3/8 SB206-19 PP206 0.42
SBPP206-20 1-1/4 1-5/16 4-39/64 3-47/64 1-1/2 29/64 0.157 2-39/64 1.1811 0.315 3/8 SB206-20 PP206 0.42
SBPP207 35 39.7 129 106 42 11.5 4.6 78 32 8.5 M10 SB207 PP207 0.63

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d h a e b s g w B n
SBPP207-20 1-1/4 1-9/16 5-5/64 4-5/32 1-21/32 29/64 0.181 3-1/8 1.2598 0.3346 3/8 SB207-20 PP207 0.63
SBPP207-21 1-5/16 1-9/16 5-5/64 4-5/32 1-21/32 29/64 0.181 3-1/8 1.2598 0.3346 3/8 SB207-21 PP207 0.63
SBPP207-22 1-3/8 1-9/16 5-5/64 4-5/32 1-21/32 29/64 0.181 3-1/8 1.2598 0.3346 3/8 SB207-22 PP207 0.63
SBPP207-23 1-7/16 1-9/16 5-5/64 4-5/32 1-21/32 29/64 0.181 3-1/8 1.2598 0.3346 3/8 SB207-23 PP207 0.63
SBPP208 40 43.7 148 120 43 13 5 86.2 34 9 M12 SB208 PP208 0.76
SBPP208-24 1-1/2 1-23/32 5-53/64 4-47/64 1-11/16 33/64 0.197 3-25/64 1.3386 0.354 7/16 SB208-24 PP208 0.76
SBPP208-25 1-9/16 1-23/32 5-53/64 4-47/64 1-11/16 33/64 0.197 3-25/64 1.3386 0.354 7/16 SB208-25 PP208 0.76
SBPP209 45 46.8 156 128 45 13 6 92.3 41.2 10.2 M12 SB209 PP209 1.02
SBPP209-26 1-5/8 1-27/32 6-9/64 5-3/64 1-25/32 33/64 0.236 3-41/64 1.622 0.402 7/16 SB209-26 PP209 1.02
SBPP209-27 1-11/16 1-27/32 6-9/64 5-3/64 1-25/32 33/64 0.236 3-41/64 1.622 0.402 7/16 SB209-27 PP209 1.02
SBPP209-28 1-3/4 1-27/32 6-9/64 5-3/64 1-25/32 33/64 0.236 3-41/64 1.622 0.402 7/16 SB209-28 PP209 1.02
