Current location: Home > Pillow_blcok_bearings > UCLP200 Series

UCLP200 Series

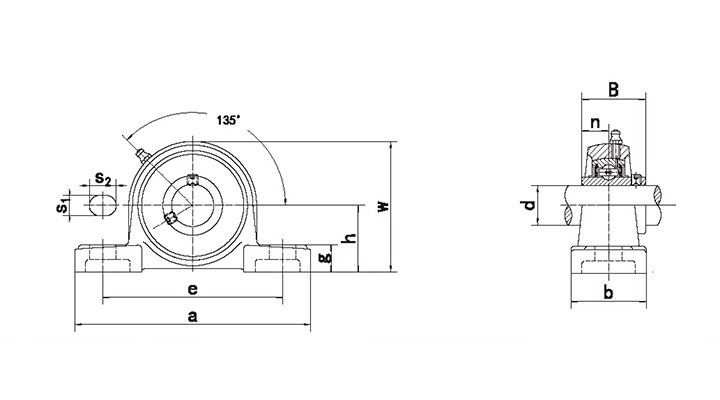

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d h a e b s1 s2 g w B n
UCLP201 12 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC201 LP201 0.69
UCLP 201-8 1/2 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.2205 0.5 3/8 UC201-8 LP201 0.68
UCLP202 15 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC202 LP202 0.68
UCLP 202-9 9/16 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.2205 0.5 3/8 UC202-9 LP202 0.68
UCLP 202-10 5/8 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.2205 0.5 3/8 UC202-10 LP202 0.68
UCLP203 17 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC203 LP203 0.67
UCLP 203-11 11/16 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.2205 0.5 3/8 UC203-11 LP203 0.66
UCLP204 20 31.75 127 95 38 13 16 14 64 31 12.7 M10 UC204 LP204 0.65
UCLP 204-12 3/4 1-1/4 5 3-3/4 1-1/2 1/2 5/8 9/16 2-33/64 1.2205 0.5 3/8 UC204-12 LP204 0.65
UCLP205 25 33.34 140 105 38 13 16 15 68 34.1 14.3 M10 UC205 LP205 0.74
UCLP 205-13 13/16 1-5/16 5-1/2 4-1/8 1-1/2 1/2 5/8 19/32 2-43/64 1.3425 0.563 3/8 UC205-13 LP205 0.78
UCLP 205-14 7/8 1-5/16 5-1/2 4-1/8 1-1/2 1/2 5/8 19/32 2-43/64 1.3425 0.563 3/8 UC205-14 LP205 0.77
UCLP 205-15 15/16 1-5/16 5-1/2 4-1/8 1-1/2 1/2 5/8 19/32 2-43/64 1.3425 0.563 3/8 UC205-15 LP205 0.75
UCLP 205-16 1 1-5/16 5-1/2 4-1/8 1-1/2 1/2 5/8 19/32 2-43/64 1.3425 0.563 3/8 UC205-16 LP205 0.74
UCLP206 30 39.69 160 121 44 17 20 17 80 38.1 15.9 M14 UC206 LP206 1.11
UCLP 206-17 1-1/16 1-9/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/32 1.5 0.626 1/2 UC206-17 LP206 1.12
UCLP 206-18 1-1/8 1-9/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/32 1.5 0.626 1/2 UC206-18 LP206 1.13
UCLP 206-19 1-3/16 1-9/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/32 1.5 0.626 1/2 UC206-19 LP206 1.11
UCLP 206-20 1-1/4 1-9/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/32 1.5 0.626 1/2 UC206-20 LP206 1.1
UCLP207 35 46.04 167 127 48 17 20 18 91 42.9 17.5 M14 UC207 LP207 1.42

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d h a e b s1 s2 g w B n
UCLP 207-20 1-1/4 1-13/16 6-9/16 5 1-7/8 43/64 25/32 45/64 3-37/64 1.689 0.689 1/2 UC207-20 LP207 1.48
UCLP 207-21 1-5/16 1-13/16 6-9/16 5 1-7/8 43/64 25/32 45/64 3-37/64 1.689 0.689 1/2 UC207-21 LP207 1.45
UCLP 207-22 1-3/8 1-13/16 6-9/16 5 1-7/8 43/64 25/32 45/64 3-37/64 1.689 0.689 1/2 UC207-22 LP207 1.42
UCLP 207-23 1-7/16 1-13/16 6-9/16 5 1-7/8 43/64 25/32 45/64 3-37/64 1.689 0.689 1/2 UC207-23 LP207 1.39
UCLP208 40 49.2 184 137 54 17 20 18 100 49.2 19 M14 UC208 LP208 1.87
UCLP 208-24 1-1/2 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 1.937 0.748 1/2 UC208-24 LP208 1.91
UCLP 208-25 1-9/16 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 1.937 0.748 1/2 UC208-25 LP208 1.88
UCLP209 45 52.39 190 146 54 17 20 20 104 49.2 19 M14 UC209 LP209 2.03
UCLP 209-26 1-5/8 2-1/16 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-3/32 1.937 0.748 1/2 UC209-26 LP209 2.13
UCLP 209-27 1-11/16 2-1/16 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-3/32 1.937 0.748 1/2 UC209-27 LP209 2.09
UCLP 209-28 1-3/4 2-1/16 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-3/32 1.937 0.748 1/2 UC209-28 LP209 2.05
UCLP210 50 55.56 206 159 60 20 23 21 112 51.6 19 M16 UC210 LP210 2.6
UCLP 210-29 1-13/16 2-3/16 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-13/32 2.0315 0.748 5/8 UC210-29 LP210 2.72
UCLP 210-30 1-7/8 2-3/16 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-13/32 2.0315 0.748 5/8 UC210-30 LP210 2.67
UCLP 210-31 1-15/16 2-3/16 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-13/32 2.0315 0.748 5/8 UC210-31 LP210 2.62
UCLP 210-32 2 2-3/16 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-13/32 2.0315 0.748 5/8 UC210-32 LP210 2.58
UCLP211 55 61.91 219 171 60 20 23 23 124 55.6 22.2 M16 UC211 LP211 3.22
UCLP 211-32 2 2-7/16 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-7/8 2.189 0.874 5/8 UC211-32 LP211 3.37
UCLP 211-33 2-1/16 2-7/16 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-7/8 2.189 0.874 5/8 UC211-33 LP211 3.31
UCLP 211-34 2-1/8 2-7/16 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-7/8 2.189 0.874 5/8 UC211-34 LP211 3.27
