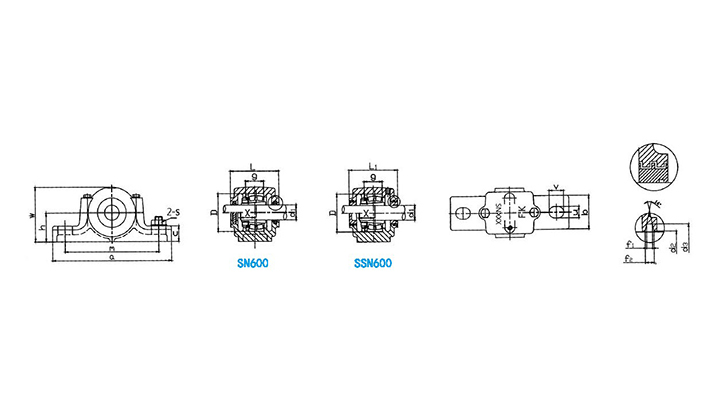

SN600 Series

Housing NO.	Dimensions(mm/in.)																				Bearing NO.		Adapter Sleeve		Locating Ring		Weight(kg)
	d₁		D	g	a	b	c	h	L	L₁	W	m	s	u	v	x	d₂	d₃	f₁	f₂	mm	in.	mm	in.	Number	QTY
	mm	in.	D	g	a	b	c	h	L	L₁	W	m	s	u	v	x	d₂	d₃	f₁	f₂	mm	in.	mm	in.	Number	QTY
SN605	20	3/4	62	34	185	52	22	50	80	83	92	150	M12	15	20	27	21.5	31	3	4.2	1305K		H305	HE305	SR62×8.5	2	2.1
SN605	20	3/4	62	34	185	52	22	50	80	83	92	150	M12	15	20	27	21.5	31	3	4.2	2305K		H2305	HE2305	SR62×10	1	2.1
SN606	25	1	72	37	185	52	22	50	82	85	97	150	M12	15	20	27	26.5	38	4	5.4	1306K		H306	HE306	SR72×9	2	3.1
SN606	25	1	72	37	185	52	22	50	82	85	97	150	M12	15	20	27	26.5	38	4	5.4	2306K		H2306	HE2306	SR72×10	1	3.1
SN607	30	1-1/8	80	41	205	60	25	60	90	93	112	70	M12	15	20	32	31.5	43	4	5.4	1307K		H307	HE307	SR80×10	2	3.73
SN607	30	1-1/8	80	41	205	60	25	60	90	93	112	70	M12	15	20	32	31.5	43	4	5.4	2307K		H2307	HE2307	SR80×10	1	3.73
SN608	35	1-1/4	90	43	205	60	25	60	95	100	117	170	M12	15	20	34	36.5	48	4	5.4	1308K	21308K	H308	HE308	SR90×10	2	4.6
SN608	35	1-1/4	90	43	205	60	25	60	95	100	117	170	M12	15	20	34	36.5	48	4	5.4	2308K	21308K	H2308	HE2308	SR90×10	1	4.6
SN609	40	1-1/2	100	46	255	70	28	70	105	110	132	210	M16	18	23	36	41.5	53	4	5.4	1309K	21309K	H309	HE309	SR100×10.5	2	5.7
SSN609	40	1-1/2	100	46	255	70	28	70	105	110	132	210	M16	18	23	36	41.5	53	4	5.4	1309K	21309K	H309	HE309	SR100×10.5	2	5.7
SN609	40	1-1/2	100	46	255	70	28	70	105	110	132	210	M16	18	23	36	41.5	53	4	5.4	2309K	22309K	H2309	HE2309	SR100×10	1	8
SSN609	40	1-1/2	100	46	255	70	28	70	105	110	132	210	M16	18	23	36	41.5	53	4	5.4	2309K	22309K	H2309	HE2309	SR100×10	1	8
SN610	45	1-3/4	110	50	255	70	30	70	115	120	137	210	M16	18	23	39	46.5	58	4	5.4	1310K	21310K	H310	HE310	SR110×1.5	2	6.5
SSN610	45	1-3/4	110	50	255	70	30	70	115	120	137	210	M16	18	23	39	46.5	58	4	5.4	1310K	21310K	H310	HE310	SR110×1.5	2	6.5
SN610	45	1-3/4	110	50	255	70	30	70	115	120	137	210	M16	18	23	39	46.5	58	4	5.4	2310K	22310K	H2310	HE2310	SR110×10	1	9
SSN610	45	1-3/4	110	50	255	70	30	70	115	120	137	210	M16	18	23	39	46.5	58	4	5.4	2310K	22310K	H2310	HE2310	SR110×10	1	9
SN611	50	2	120	53	275	80	30	80	120	125	150	230	M16	18	23	40	51.5	67	5	6.9	1311K	21311K	H311	HE311	SR120×12	2	6.8
SSN611	50	2	120	53	275	80	30	80	120	125	150	230	M16	18	23	40	51.5	67	5	6.9	1311K	2, 1311K	H311	HE311	SR120×12	2	6.8
SN611	50	2	120	53	275	80	30	80	120	125	150	230	M16	18	23	40	51.5	67	5	6.9	2311K	22311K	H2311	HE2311	SR120×10	1	9.5
SSN611	50	2	120	53	275	80	30	80	120	125	150	230	M16	18	23	40	51.5	67	5	6.9	2311K	22311K	H2311	HE2311	SR120×10	1	9.5
