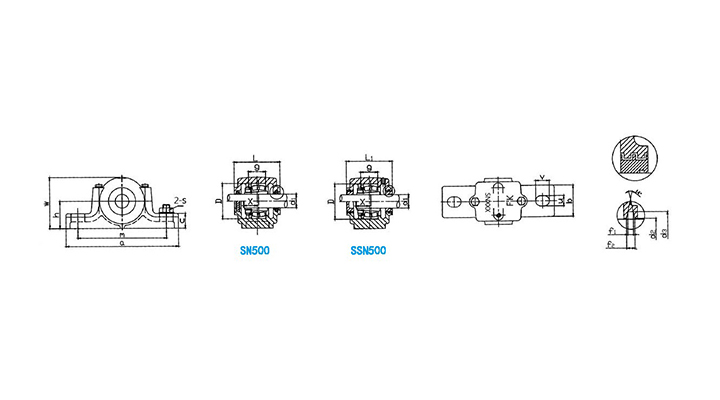

SN500 Series

Housing NO.	Dimensions(mm/in.)																				Bearing NO.		Adapter Sleeve		Locating Ring		Weight(kg)
	d₁		D	g	a	b	c	h	L	L₁	W	m	s	u	v	x	d₂	d₃	f₁	f₂	mm	in.	mm	in.	Number	QTY
	mm	in.	D	g	a	b	c	h	L	L₁	W	m	s	u	v	x	d₂	d₃	f₁	f₂	mm	in.	mm	in.	Number	QTY
SN505	20	3/4	52	25	165	46	22	40	67	70	73	130	M12	15	20	22	21.5	31	3	4.2	1205K	22205K	H205	HE205	SR52×5	2	1.4
SN505	20	3/4	52	25	165	46	22	40	67	70	73	130	M12	15	20	22	21.5	31	3	4.2	2205K	22205K	H305	HE305	SR52×7	1	1.4
SN506	25	1	62	30	185	52	22	50	77	80	89	150	M12	15	20	22	26.5	38	4	5.4	1206K	22206K	H206	HE206	SR62×7	2	2.15
SN506	25	1	62	30	185	52	22	50	77	80	89	150	M12	15	20	22	26.5	38	4	5.4	2206K	22206K	H306	HE306	SR62×10	1	2.15
SN507	30	1-1/8	72	33	185	52	22	50	82	85	94	150	M12	15	20	24	31.5	43	4	5.4	1207K	22207K	H207	HE207	SR72×8	2	2.35
SN507	30	1-1/8	72	33	185	52	22	50	82	85	94	150	M12	15	20	24	31.5	43	4	5.4	2207K	22207K	H307	HE307	SR72×10	1	2.35
SN508	35	1-1/4	80	33	205	60	25	60	85	90	109	170	M12	15	20	26	36.5	48	4	5.4	1208K	22208K	H208	HE208	SR80×7.5	2	3.2
SN508	35	1-1/4	80	33	205	60	25	60	85	90	109	170	M12	15	20	26	36.5	48	4	5.4	2208K	22208K	H308	HE308	SR80×10	1	3.2
SN509	40	1-1/2	85	31	205	60	25	60	85	90	111	170	M12	15	20	28	41.5	53	4	5.4	1209K	22209K	H209	HE209	SR85×5.5	2	3
SSN509	40	1-1/2	85	31	205	60	25	60	85	90	111	170	M12	15	20	28	41.5	53	4	5.4	1209K	22209K	H209	HE209	SR85×5.5	2	3
SN509	40	1-1/2	85	31	205	60	25	60	85	90	111	170	M12	15	20	28	41.5	53	4	5.4	2209K	22209K	H309	HE309	SR80×7	1	4.4
SSN509	40	1-1/2	85	31	205	60	25	60	85	90	111	170	M12	15	20	28	41.5	53	4	5.4	2209K	22209K	H309	HE309	SR80×7	1	4.4
SN510	45	1-3/4	90	33	205	60	25	60	90	95	114	170	M12	15	20	28	46.5	58	4	5.4	1210K	22210K	H210	HE210	SR90×6.5	2	3.75
SSN510	45	1-3/4	90	33	205	60	25	60	90	95	114	170	M12	15	20	28	46.5	58	4	5.4	1210K	22210K	H210	HE210	SR90×6.5	2	3.75
SN510	45	1-3/4	90	33	205	60	25	60	90	95	114	170	M12	15	20	28	46.5	58	4	5.4	2210K	22210K	H310	HE310	SR90×10	1	5
SSN510	45	1-3/4	90	33	205	60	25	60	90	95	114	170	M12	15	20	28	46.5	58	4	5.4	2210K	22210K	H310	HE310	SR90×10	1	5
SN511	50	2	100	33	255	70	28	70	95	100	129	210	M16	18	23	30	51.5	67	5	6.9	1211K	22211K	H211	HE211	SR100×6	2	5.3
SSN511	50	2	100	33	255	70	28	70	95	100	129	210	M16	18	23	30	51.5	67	5	6.9	1211K	22211K	H211	HE211	SR100×6	2	5.3
SN511	50	2	100	33	255	70	28	70	95	100	129	210	M16	18	23	30	51.5	67	5	6.9	2211K	22211K	H311	HE311	SR100×8	1	7.15
SSN511	50	2	100	33	255	70	28	70	95	100	129	210	M16	18	23	30	51.5	67	5	6.9	2211K	22211K	H311	HE311	SR100×8	1	7.15
