Current location: Home > Pillow_blcok_bearings > JB200 Series

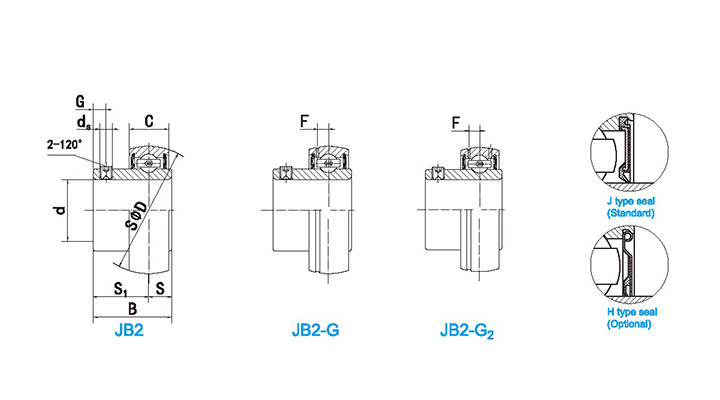

JB200 Series



Bearing NO. Dimensions(mm/in.) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D B C S S1 ds F G
JB201 12 40 22.5 13 6.5 16 M5X0.8 3.4 4.5 9600 4600 0.11
JB 201-8 1/2 1.5748 0.8858 0.5118 0.256 0.63 10-32UNF 0.134 0.177 9600 4600 0.11
JB202 15 40 22.5 13 6.5 16 M5X0.8 3.4 4.5 9600 4600 0.11
JB 202-9 9/16 1.5748 0.8858 0.5118 0.256 0.63 10-32UNF 0.134 0.177 9600 4600 0.11
JB 202-10 5/8 1.5748 0.8858 0.5118 0.256 0.63 10-32UNF 0.134 0.177 9600 4600 0.11
JB203 17 40 22.5 13 6.5 16 M5X0.8 3.4 4.5 9600 4600 0.1
JB 203-11 11/16 1.5748 0.8858 0.5118 0.256 0.63 10-32UNF 0.134 0.177 9600 4600 0.1
JB204 20 47 25.5 15 7.5 18 M6X1 4.2 4.5 12800 6650 0.14
JB 204-12 3/4 1.8504 1.0039 0.5906 0.295 0.709 1/4-28UNF 0.165 0.177 12800 6650 0.15
JB205 25 52 27 15 7.5 19.5 M6X1 4.3 5.5 14000 7850 0.16
JB 205-13 13/16 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.169 0.217 14000 7850 0.19
JB 205-14 7/8 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.169 0.217 14000 7850 0.18
JB 205-15 15/16 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.169 0.217 14000 7850 0.17
JB 205-16 1 2.0472 1.063 0.5906 0.295 0.768 1/4-28UNF 0.169 0.217 14000 7850 0.16
JB206 30 62 30 18 9 21 M6X1 5 6 19500 11300 0.26
JB 206-17 1-1/16 2.4409 1.1811 0.7087 0.354 0.827 1/4-28UNF 0.197 0.236 19500 11300 0.29
JB 206-18 1-1/8 2.4409 1.1811 0.7087 0.354 0.827 1/4-28UNF 0.197 0.236 19500 11300 0.27
JB 206-19 1-3/16 2.4409 1.1811 0.7087 0.354 0.827 1/4-28UNF 0.197 0.236 19500 11300 0.26
JB 206-20 1-1/4 2.4409 1.1811 0.7087 0.354 0.827 1/4-28UNF 0.197 0.236 19500 11300 0.25
JB207 35 72 35 19 9.5 25.5 M8X1 5.6 6.5 25700 15300 0.37

Bearing NO. Dimensions(mm/in.) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D B C S S1 ds F G
JB 207-20 1-1/4 2.8346 1.378 0.748 0.374 1.004 5/16-24UNF 0.22 0.256 25700 15300 0.42
JB 207-21 1-5/16 2.8346 1.378 0.748 0.374 1.004 5/16-24UNF 0.22 0.256 25700 15300 0.4
JB 207-22 1-3/8 2.8346 1.378 0.748 0.374 1.004 5/16-24UNF 0.22 0.256 25700 15300 0.37
JB 207-23 1-7/16 2.8346 1.378 0.748 0.374 1.004 5/16-24UNF 0.22 0.256 25700 15300 0.36
JB208 40 80 40 22 11 29 M8X1 5.9 7 29500 18100 0.47
JB 208-24 1-1/2 3.1496 1.5748 0.8661 0.433 1.142 5/16-24UNF 0.232 0.276 29500 18100 0.45
JB 208-25 1-9/16 3.1496 1.5748 0.8661 0.433 1.142 5/16-24UNF 0.232 0.276 29500 18100 0.47
JB209 45 85 41.5 22 11 30.5 M8X1 6.1 8.2 31600 20600 0.55
JB 209-26 1-5/8 3.3465 1.6339 0.8661 0.433 1.201 5/16-24UNF 0.24 0.323 31600 20600 0.55
JB 209-27 1-11/16 3.3465 1.6339 0.8661 0.433 1.201 5/16-24UNF 0.24 0.323 31600 20600 0.55
JB 209-28 1-3/4 3.3465 1.6339 0.8661 0.433 1.201 5/16-24UNF 0.24 0.323 31600 20600 0.55
JB210 50 90 43 22 11 32 M10X1 6.5 9.2 35000 23200 0.64
JB 210-29 1-13/16 3.5433 1.6929 0.8661 0.433 1.26 3/8-24UNF 0.256 0.362 35000 23200 0.64
JB 210-30 1-7/8 3.5433 1.6929 0.8661 0.433 1.26 3/8-24UNF 0.256 0.362 35000 23200 0.64
JB 210-31 1-15/16 3.5433 1.6929 0.8661 0.433 1.26 3/8-24UNF 0.256 0.362 35000 23200 0.64
JB 210-32 2 3.5433 1.6929 0.8661 0.433 1.26 3/8-24UNF 0.256 0.362 35000 23200 0.64
