JA200 Series

Bearing NO.	Dimensions(mm/in.)											Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)

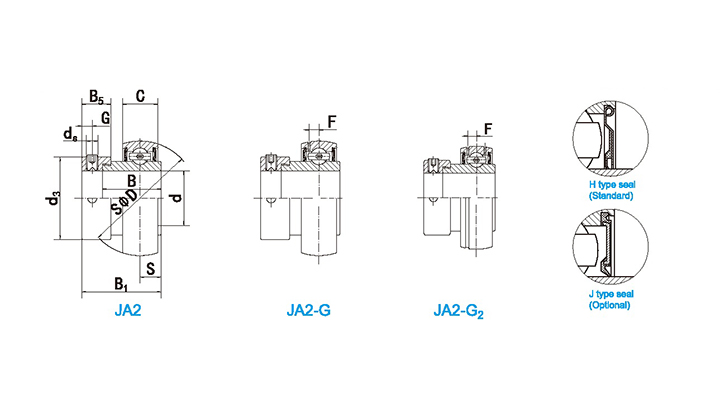

Bearing NO.	d	D	B₁	B	C	S	d_s	G	F	B₅	d₃	Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)
JA201	12	40	28.6	19.1	13	6.5	M6X1	4.8	3.4	13.5	28.6	9600	4600	0.13
JA 201-8	1/2	1.5748	1.126	0.752	0.5118	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	9600	4600	0.13
JA202	15	40	28.6	19.1	13	6.5	M6X1	4.8	3.4	13.5	28.6	9600	4600	0.11
JA 202-9	9/16	1.5748	1.126	0.752	0.5118	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	9600	4600	0.11
JA 202-10	5/8	2.5748	2.126	1.752	1.5118	1.256	1/4-29UNF	1.189	0.134	1.531	2.126	9600	4600	0.11
JA203	17	40	28.6	19.1	13	6.5	M6X1	4.8	3.4	13.5	28.6	9600	4600	0.1
JA 203-11	11/16	1.5748	1.126	0.752	0.5118	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	9600	4600	0.1
JA204	20	47	31	21.5	15	7.5	M6X1	4.8	4.2	13.5	33.3	12800	6650	0.16
JA 204-12	3/4	1.8504	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.165	0.531	1.311	12800	6650	0.16
JA205	25	52	31	21.5	15	7.5	M6X1	4.8	4.3	13.5	38.1	14000	7850	0.2
JA 205-13	13/16	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	14000	7850	0.22
JA 205-14	7/8	3.0472	2.22	1.8465	1.5906	1.295	1/4-29UNF	1.189	0.169	1.531	2.5	14000	7850	0.21
JA 205-15	15/16	4.0472	3.22	2.8465	2.5906	2.295	1/4-30UNF	2.189	0.169	2.531	3.5	14000	7850	0.21
JA 205-16	1	5.0472	4.22	3.8465	3.5906	3.295	1/4-31UNF	3.189	0.169	3.531	4.5	14000	7850	0.2
JA206	30	62	35.7	23.8	18	9	M8X1	6	5	15.9	44.5	19500	11300	0.31
JA 206-17	1-1/16	2.4409	1.406	0.937	0.7087	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	19500	11300	0.33
JA 206-18	1-1/8	3.4409	2.406	1.937	1.7087	1.354	5/16-25UNF	1.236	0.197	1.626	2.752	19500	11300	0.32
JA 206-19	1-3/16	4.4409	3.406	2.937	2.7087	2.354	5/16-26UNF	2.236	0.197	2.626	3.752	19500	11300	0.31
JA 206-20	1-1/4	5.4409	4.406	3.937	3.7087	3.354	5/16-27UNF	3.236	0.197	3.626	4.752	19500	11300	0.3
JA207	35	72	38.9	25.4	19	9.5	M8X1	6.8	5.6	17.5	55.6	25700	15300	0.43

Bearing NO.	Dimensions(mm/in.)											Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)
Bearing NO.	d	D	B₁	B	C	S	d_s	G	F	B₅	d₃	Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)
JA 207-20	1-1/4	2.8346	1.531	1	0.748	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	25700	15300	0.47
JA 207-21	1-5/16	3.8346	2.531	2	1.748	1.374	5/16-25UNF	1.268	0.22	1.689	3.189	25700	15300	0.44
JA 207-22	1-3/8	4.8346	3.531	3	2.748	2.374	5/16-26UNF	2.268	0.22	2.689	4.189	25700	15300	0.43
JA 207-23	1-7/16	5.8346	4.531	4	3.748	3.374	5/16-27UNF	3.268	0.22	3.689	5.189	25700	15300	0.42
JA208	40	80	43.7	30.2	22	11	M8X1	6.8	5.9	18.3	60.3	29500	18100	0.62
JA 208-24	1-1/2	3.1496	1.721	1.189	0.8661	0.433	5/16-24UNF	0.268	0.232	0.72	2.374	29500	18100	0.6
JA 208-25	1-9/16	4.1496	2.721	2.189	1.8661	1.433	5/16-25UNF	1.268	0.232	1.72	3.374	29500	18100	0.62
JA209	45	85	43.7	30.2	22	11	M8X1	6.8	6.1	18.3	63.5	31600	20600	0.66
JA 209-26	1-5/8	3.3465	1.721	1.189	0.8661	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	31600	20600	0.66
JA 209-27	1-11/16	4.3465	2.721	2.189	1.8661	1.433	5/16-25UNF	1.268	0.24	1.72	3.5	31600	20600	0.66
JA 209-28	1-3/4	5.3465	3.721	3.189	2.8661	2.433	5/16-26UNF	2.268	0.24	2.72	4.5	31600	20600	0.66
JA210	50	90	43.7	30.2	22	11	M8X1	6.8	6.5	18.3	69.9	35000	23200	0.75
JA 210-29	1-13/16	3.5433	1.721	1.189	0.8661	0.433	5/16-24UNF	0.268	0.256	0.72	2.752	35000	23200	0.75
JA 210-30	1-7/8	4.5433	2.721	2.189	1.8661	1.433	5/16-25UNF	1.268	0.256	1.72	3.752	35000	23200	0.75
JA 210-31	1-15/16	5.5433	3.721	3.189	2.8661	2.433	5/16-26UNF	2.268	0.256	2.72	4.752	35000	23200	0.75
JA 210-32	2	6.5433	4.721	4.189	3.8661	3.433	5/16-27UNF	3.268	0.256	3.72	5.752	35000	23200	0.75

JA 211-32	2	3.937	1.906	1.2795	0.9449	0.472	3/8-24UNF	0.315	0.276	0.815	3	43500	29200	1.03
JA 211-33	2-1/16	4.937	2.906	2.2795	1.9449	1.472	3/8-25UNF	1.315	0.276	1.815	4	43500	29200	1.03
JA 211-34	2-1/8	5.937	3.906	3.2795	2.9449	2.472	3/8-26UNF	2.315	0.276	2.815	5	43500	29200	1.03
