Current location: Home > Pillow_blcok_bearings > SER200 Series

SER200 Series

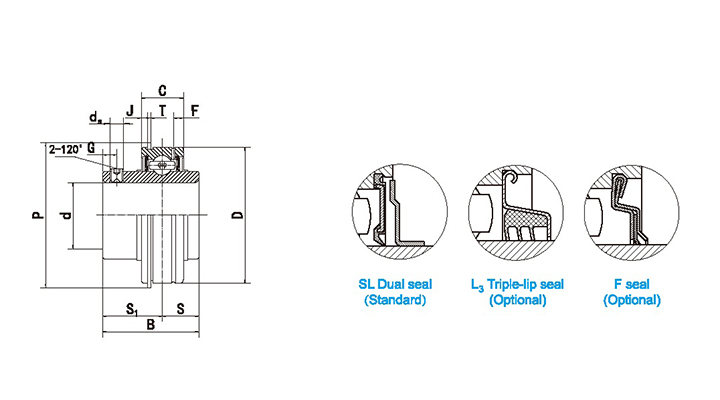

Bearing NO. Dimensions(mm/in.) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D B C S S1 T F J P G ds
SER201 12 47 31 15.9 10.3 20.7 1.12 3.8 2.46 52.7 4.8 M6x1 12800 6600 0.22
SER 201-8 1/2 1.8504 1.2205 0.626 0.406 0.815 0.044 0.15 0.097 2.075 0.189 1/4-28UNF 12800 6600 0.22
SER202 15 1.8504 1.2205 0.626 0.406 0.815 0.044 0.15 0.097 2.075 0.189 1/4-28UNF 12800 6600 0.22
SER 202-10 5/8 1.8504 1.2205 0.626 0.406 0.815 0.044 0.15 0.097 2.075 0.189 1/4-28UNF 12800 6600 0.22
SER203 17 1.8504 1.2205 0.626 0.406 0.815 0.044 0.15 0.097 2.075 0.189 1/4-28UNF 12800 6600 0.22
SER204 20 47 31 15.9 10.3 20.7 1.12 3.8 2.46 52.7 4.8 M6x1 12800 6600 0.17
SER 204-12 3/4 1.8504 1.2205 0.626 0.406 0.815 0.044 0.15 0.097 2.075 0.189 1/4-28UNF 12800 6600 0.17
SER205 25 52 34.9 19 13.1 21.8 1.12 5.2 2.46 57.9 4.8 M6x1 14000 7850 0.21
SER 205-13 13/16 2.0472 1.374 0.748 0.516 0.858 0.044 0.205 0.097 2.28 0.197 1/4-28UNF 14000 7850 0.21
SER 205-14 7/8 2.0472 1.374 0.748 0.516 0.858 0.044 0.205 0.097 2.28 0.197 1/4-28UNF 14000 7850 0.21
SER 205-15 15/16 2.0472 1.374 0.748 0.516 0.858 0.044 0.205 0.097 2.28 0.197 1/4-28UNF 14000 7850 0.21
SER 205-16 1 2.0472 1.374 0.748 0.516 0.858 0.044 0.205 0.097 2.28 0.197 1/4-28UNF 14000 7850 0.21
SER206 30 62 38.1 22.2 15.9 22.2 1.7 5.6 3.28 67.7 5 M6x1 19450 11250 0.33
SER 206-17 1-1/16 2.4409 1.5 0.874 0.626 0.874 0.067 0.22 0.129 2.665 0.197 1/4-28UNF 19450 11250 0.33
SER 206-18 1-1/8 2.4409 1.5 0.874 0.626 0.874 0.067 0.22 0.129 2.665 0.197 1/4-28UNF 19450 11250 0.33
SER 206-19 1-3/16 2.4409 1.5 0.874 0.626 0.874 0.067 0.22 0.129 2.665 0.197 1/4-28UNF 19450 11250 0.33
SER 206-20 1-1/4 2.4409 1.5 0.874 0.626 0.874 0.067 0.22 0.129 2.665 0.197 1/4-28UNF 19450 11250 0.33
SER207 35 72 42.9 23.8 17.5 25.4 1.7 5.6 3.28 78.6 6.7 M8x1 25700 15200 0.5
SER 207-20 1-1/4 2.8346 1.689 0.937 0.689 1 0.067 0.22 0.129 3.094 0.264 5/16-24UNF 25700 15200 0.5
SER 207-21 1-5/16 2.8346 1.689 0.937 0.689 1 0.067 0.22 0.129 3.094 0.264 5/16-24UNF 25700 15200 0.5

Bearing NO. Dimensions(mm/in.) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d D B C S S1 T F J P G ds
SER 207-22 1-3/8 2.8346 1.689 0.937 0.689 1 0.067 0.22 0.129 3.094 0.264 5/16-24UNF 25700 15200 0.5
SER 207-23 1-7/16 2.8346 1.689 0.937 0.689 1 0.067 0.22 0.129 3.094 0.264 5/16-24UNF 25700 15200 0.5
SER208 40 80 49.2 27.8 19 30.2 1.7 6.4 3.28 86.6 8 M8x1 29500 18100 0.7
SER 208-24 1-1/2 3.1496 1.937 1.0945 0.748 1.189 0.067 0.252 0.129 3.409 0.315 5/16-24UNF 29500 18100 0.7
SER 208-25 1-9/16 3.1496 1.937 1.0945 0.748 1.189 0.067 0.252 0.129 3.409 0.315 5/16-24UNF 29500 18100 0.7
SER209 45 85 49.2 27.8 19 30.2 1.7 6.4 3.28 91.6 8 M8x1 32700 20900 0.72
SER 209-26 1-5/8 3.3465 1.937 1.0945 0.748 1.189 0.067 0.252 0.129 3.606 0.315 5/16-24UNF 32700 20900 0.72
SER 209-27 1-11/16 3.3465 1.937 1.0945 0.748 1.189 0.067 0.252 0.129 3.606 0.315 5/16-24UNF 32700 20900 0.72
SER 209-28 1-3/4 3.3465 1.937 1.0945 0.748 1.189 0.067 0.252 0.129 3.606 0.315 5/16-24UNF 32700 20900 0.72
SER210 50 90 51.6 28.6 19 32.6 2.46 7.5 3.28 96.5 10 M10x1 35000 23200 0.83
SER 210-29 1-13/16 3.5433 2.0315 1.126 0.748 1.283 0.097 0.295 0.129 3.799 0.394 3/8-24UNF 35000 23200 0.83
SER 210-30 1-7/8 3.5433 2.0315 1.126 0.748 1.283 0.097 0.295 0.129 3.799 0.394 3/8-24UNF 35000 23200 0.83
SER 210-31 1-15/16 3.5433 2.0315 1.126 0.748 1.283 0.097 0.295 0.129 3.799 0.394 3/8-24UNF 35000 23200 0.83
SER 210-32 2 3.5433 2.0315 1.126 0.748 1.283 0.097 0.295 0.129 3.799 0.394 3/8-24UNF 35000 23200 0.83
SER211 55 100 55.6 30.2 22.2 33.4 2.46 7.5 3.28 106.5 10 M10x1 43300 29200 1.1
SER 211-32 2 3.937 2.189 1.189 0.874 1.315 0.097 0.295 0.129 4.193 0.394 3/8-24UNF 43300 29200 1.1
SER 211-33 2-1/16 3.937 2.189 1.189 0.874 1.315 0.097 0.295 0.129 4.193 0.394 3/8-24UNF 43300 29200 1.1
SER 211-34 2-1/8 3.937 2.189 1.189 0.874 1.315 0.097 0.295 0.129 4.193 0.394 3/8-24UNF 43300 29200 1.1
SER 211-35 2-3/16 3.937 2.189 1.189 0.874 1.315 0.097 0.295 0.129 4.193 0.394 3/8-24UNF 43300 29200 1.1
SER212 60 110 65.1 31.8 25.4 39.7 2.46 7.5 3.28 116.6 10 M10x1 47700 32800 1.53
