| Current location: Home > Pillow_blcok_bearings > K Series |

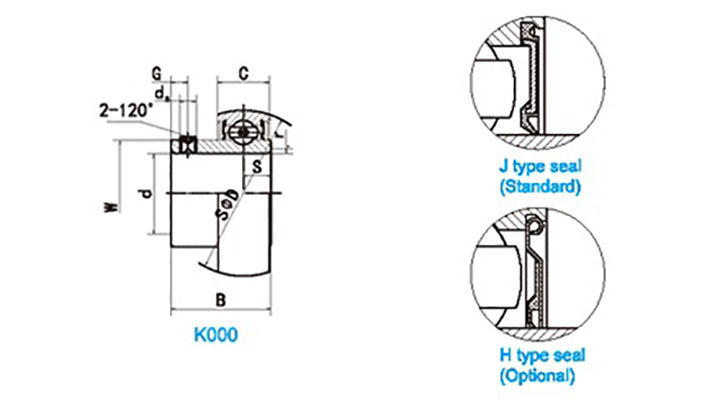

| Bearing NO. |
Dimensions(mm/in.) |
Dynamic load ratings(N) |
Static load ratings(N) |
Weight(kg) |
| d |
D |
B |
C |
r |
S |
G |
ds |
| K000 |
10 |
26 |
14 |
8 |
0.5 |
4 |
3 |
M3X0.35 |
4606 |
1906 |
0.02 |
| SS-K000 |
10 |
1.0236 |
0.551 |
0.315 |
0.5 |
0.157 |
0.118 |
M3X0.35 |
4606 |
1906 |
0.02 |
| K001 |
12 |
28 |
14.5 |
8 |
0.5 |
4 |
3 |
M3X0.35 |
5096 |
2401 |
0.03 |
| SS-K001 |
12 |
1.1024 |
0.571 |
0.315 |
0.5 |
0.157 |
0.118 |
M3X0.35 |
5096 |
2401 |
0.03 |
| K002 |
15 |
32 |
16.5 |
9 |
0.5 |
4.5 |
3.5 |
M4X0.5 |
5586 |
2842 |
0.05 |
| SS-K002 |
15 |
1.2598 |
0.65 |
0.354 |
0.5 |
0.177 |
0.138 |
M4X0.5 |
5586 |
2842 |
0.05 |
| K003 |
17 |
35 |
17.5 |
10 |
0.5 |
5 |
3.5 |
M4X0.5 |
5978 |
3284 |
0.05 |
| SS-K003 |
17 |
1.3779 |
0.689 |
0.394 |
0.5 |
0.197 |
0.138 |
M4X0.5 |
5978 |
3284 |
0.05 |
| K004 |
20 |
42 |
21 |
12 |
1 |
6 |
4 |
M5X0.5 |
9359 |
5047 |
0.09 |
| SS-K004 |
20 |
1.6535 |
0.827 |
0.472 |
1 |
0.236 |
0.157 |
M5X0.5 |
9359 |
5047 |
0.09 |
| K005 |
25 |
47 |
22.5 |
12 |
1 |
6 |
4.5 |
M5X0.5 |
10094 |
5831 |
0.1 |
| SS-K005 |
25 |
1.8504 |
0.886 |
0.472 |
1 |
0.236 |
0.177 |
M5X0.5 |
10094 |
5831 |
0.1 |
| K006 |
30 |
55 |
24.5 |
13 |
1.5 |
6.5 |
5 |
M5X0.5 |
13230 |
8281 |
0.15 |
| SS-K006 |
30 |
2.1653 |
0.965 |
0.512 |
1.5 |
0.256 |
0.197 |
M5X0.5 |
13230 |
8281 |
0.15 | |
|
|
