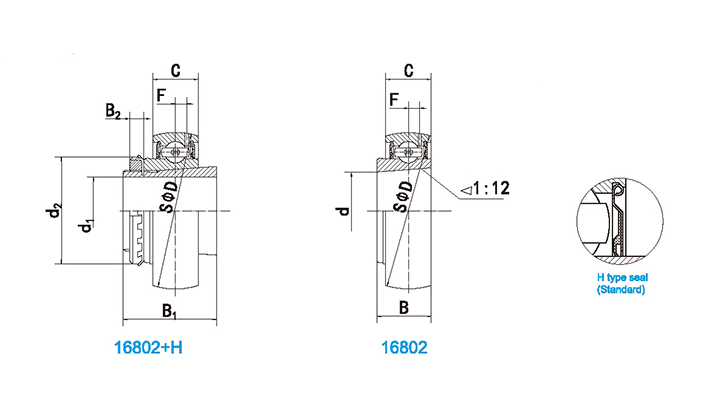

| Current location: Home > Pillow_blcok_bearings > 16802 Series |
| Bearing NO. |
Dimensions(mm/in.) |
Dynamic load ratings(N) |
Static load ratings(N) |
Weight(kg) |
| d1 |
d |
D |
B |
C |
B1 |
B2 |
d2 |
F |
| 1680204;H305 |
20 |
25 |
52 |
18 |
16 |
29 |
8 |
38 |
3.7 |
14000 |
7900 |
0.2 |
| 1680204;HE305 |
3/4 |
0.9843 |
2.0472 |
0.7087 |
0.6299 |
1.1417 |
0.315 |
1.496 |
0.146 |
14000 |
7900 |
0.2 |
| 1680204;HA305 |
11/16 |
0.9843 |
2.0472 |
0.7087 |
0.6299 |
1.1417 |
0.315 |
1.496 |
0.146 |
14000 |
7900 |
0.2 |
| 1680205;H306 |
25 |
30 |
62 |
20 |
18 |
31 |
8 |
45 |
5 |
19400 |
11200 |
0.315 |
| 1680205;HE306 |
1 |
1.1811 |
2.4409 |
0.7874 |
0.7087 |
1.2205 |
0.315 |
1.772 |
0.197 |
19400 |
11200 |
0.315 |
| 1680205;HA306 |
15/16 |
1.1811 |
2.4409 |
0.7874 |
0.7087 |
1.2205 |
0.315 |
1.772 |
0.197 |
19400 |
11200 |
0.315 |
| 1680205;HS306 |
7/8 |
1.1811 |
2.4409 |
0.7874 |
0.7087 |
1.2205 |
0.315 |
1.772 |
0.197 |
19400 |
11200 |
0.315 |
| 1680206;H307 |
30 |
35 |
72 |
22 |
20 |
35 |
9 |
52 |
5.7 |
25700 |
15200 |
0.47 |
| 1680206;HA307 |
1-3/16 |
1.378 |
2.8346 |
0.8661 |
0.7874 |
1.3779 |
0.354 |
2.047 |
0.224 |
25700 |
15200 |
0.47 |
| 1680206;HS307 |
1-1/8 |
1.378 |
2.8346 |
0.8661 |
0.7874 |
1.3779 |
0.354 |
2.047 |
0.224 |
25700 |
15200 |
0.47 |
| 1680207;H308 |
35 |
40 |
80 |
23 |
21 |
36 |
10 |
58 |
5.9 |
29500 |
18100 |
0.59 |
| 1680207;HE308 |
1-1/4 |
1.5748 |
3.1496 |
0.9055 |
0.8268 |
1.417 |
0.394 |
2.283 |
0.2323 |
29500 |
18100 |
0.59 |
| 1680207;HA308 |
1-5/16 |
1.5748 |
3.1496 |
0.9055 |
0.8268 |
1.417 |
0.394 |
2.283 |
0.2323 |
29500 |
18100 |
0.59 |
| 1680207;HS308 |
1-3/8 |
1.5748 |
3.1496 |
0.9055 |
0.8268 |
1.417 |
0.394 |
2.283 |
0.2323 |
29500 |
18100 |
0.59 |
| 1680208;H309 |
40 |
45 |
85 |
23 |
21 |
39 |
11 |
65 |
6.4 |
32700 |
20900 |
0.66 |
| 1680208;HE309 |
1-1/2 |
1.7717 |
3.3465 |
0.9055 |
0.8268 |
1.5354 |
0.433 |
2.559 |
0.252 |
32700 |
20900 |
0.66 |
| 1680208;HA309 |
1-7/16 |
1.7717 |
3.3465 |
0.9055 |
0.8268 |
1.5354 |
0.433 |
2.559 |
0.252 |
32700 |
20900 |
0.66 | |
|
|
