SA Series

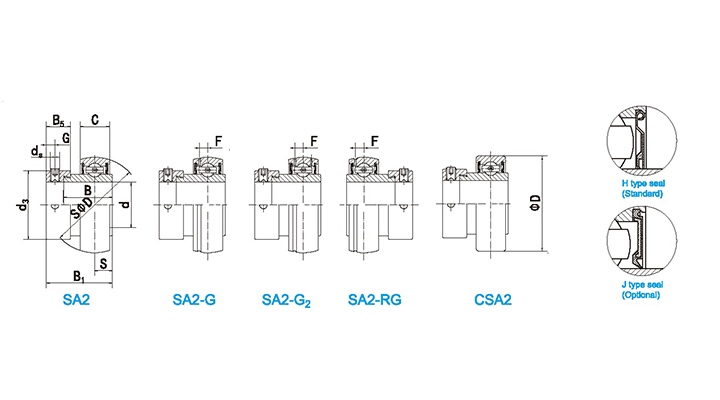

Bearing NO.	Dimensions(mm/in.)											Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)
Bearing NO.	d	D	B	B₁	C	S	d_s	G	F	B₅	d₃	Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)
SA201	12	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	9600	4600	0.12
SA 201-8	1/2	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	9600	4600	0.12
SA202	15	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	9600	4600	0.1
SA 202-9	9/16	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	9600	4600	0.1
SA 202-10	5/8	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	9600	4600	0.1
SA203	17	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	9600	4600	0.09
SA 203-11	11/16	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	9600	4600	0.09
SA204	20	47	31	21.5	14	7.5	M6X1	4.8	4.2	13.5	33.3	12800	6600	0.16
SA 204-12	3/4	1.8504	1.22	0.8465	0.5512	0.295	1/4-28UNF	0.189	0.165	0.531	1.311	12800	6600	0.16
SA205	25	52	31	21.5	15	7.5	M6X1	4.8	4.3	13.5	38.1	14000	7850	0.2
SA 205-13	13/16	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	14000	7850	0.22
SA 205-14	7/8	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	14000	7850	0.21
SA 205-15	15/16	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	14000	7850	0.21
SA 205-16	1	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	14000	7850	0.2
SA206	30	62	35.7	23.8	16	9	M8X1	6	5	15.9	44.5	19450	11250	0.3
SA 206-17	1-1/16	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	19450	11250	0.32
SA 206-18	1-1/8	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	19450	11250	0.31
SA 206-19	1-3/16	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	19450	11250	0.3
SA 206-20	1-1/4	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	19450	11250	0.29
SA207	35	72	38.9	25.4	17	9.5	M8X1	6.8	5.6	17.5	55.6	25700	15200	0.42

Bearing NO.	Dimensions(mm/in.)											Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)
Bearing NO.	d	D	B	B₁	C	S	d_s	G	F	B₅	d₃	Dynamic load ratings(N)	Static load ratings(N)	Weight(kg)
SA 207-20	1-1/4	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	25700	15200	0.46
SA 207-21	1-5/16	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	25700	15200	0.43
SA 207-22	1-3/8	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	25700	15200	0.42
SA 207-23	1-7/16	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	25700	15200	0.41
SA208	40	80	43.7	30.2	18	11	M8X1	6.8	5.9	18.3	60.3	29500	18100	0.6
SA 208-24	1-1/2	3.1496	1.721	1.189	0.7087	0.433	5/16-24UNF	0.268	0.232	0.72	2.374	29500	18100	0.58
SA 208-25	1-9/16	3.1496	1.721	1.189	0.7087	0.433	5/16-24UNF	0.268	0.232	0.72	2.374	29500	18100	0.6
SA209	45	85	43.7	30.2	19	11	M8X1	6.8	6.1	18.3	63.5	32700	20900	0.64
SA 209-26	1-5/8	3.3465	1.721	1.189	0.748	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	32700	20900	0.64
SA 209-27	1-11/16	3.3465	1.721	1.189	0.748	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	32700	20900	0.64
SA 209-28	1-3/4	3.3465	1.721	1.189	0.748	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	32700	20900	0.64
SA210	50	90	43.7	30.2	20	11	M8X1	6.8	6.5	18.3	69.9	35000	23200	0.72
SA 210-29	1-13/16	3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	35000	23200	0.72
SA 210-30	1-7/8	3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	35000	23200	0.72
SA 210-31	1-15/16	3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	35000	23200	0.72
SA 210-32		3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	35000	23200	0.72
SA211	55	100	48.4	32.5	21	12	M10X1	8	7	20.7	76.2	43500	29200	1
SA 211-32	2	3.937	1.906	1.2795	0.8268	0.472	3/8-24UNF	0.315	0.276	0.815	3	43500	29200	1
SA 211-33	2-1/16	3.937	1.906	1.2795	0.8268	0.472	3/8-24UNF	0.315	0.276	0.815	3	43500	29200	1
SA 211-34	2-1/8	3.937	1.906	1.2795	0.8268	0.472	3/8-24UNF	0.315	0.276	0.815	3	43500	29200	1
