| Current location: Home > Pillow_blcok_bearings > KP Series |
| Unit NO. |
Dimensions(mm/in.) |
Bolt Size mm/in. |
Bearing NO. |
Housing NO. |
Weight(kg) |

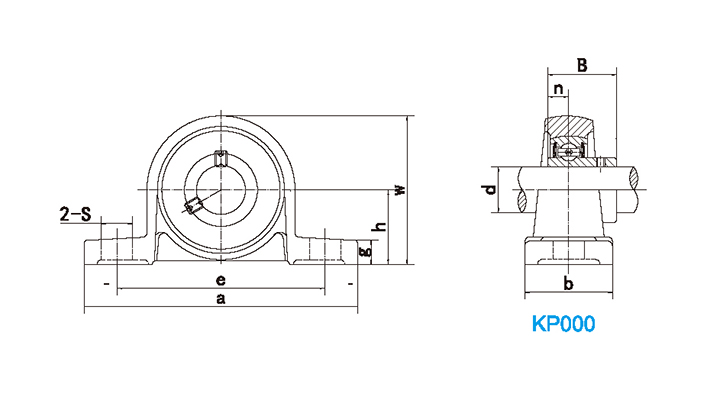

| d |
h |
a |
e |
b |
S |
g |
w |
B |
n |
| KP000 |
10 |
18 |
67 |
53 |
16 |
7 |
6 |
35 |
14 |
4 |
M6 |
K000 |
P000 |
0.07 |
| KP000 |
10 |
23/32 |
2-41/64 |
2-3/32 |
5/8 |
9/32 |
15/64 |
1-3/8 |
0.551 |
0.157 |
M6 |
K000 |
P000 |
0.07 |
| KP001 |
12 |
19 |
71 |
56 |
16 |
7 |
6 |
38 |
14.5 |
4 |
M6 |
K001 |
P001 |
0.09 |
| KP001 |
12 |
3/4 |
2-51/64 |
2-13/64 |
5/8 |
9/32 |
15/64 |
1-1/2 |
0.571 |
0.157 |
M6 |
K001 |
P001 |
0.09 |
| KP002 |
15 |
22 |
80 |
63 |
16 |
7 |
7 |
43 |
16.5 |
4.5 |
M6 |
K002 |
P002 |
0.13 |
| KP002 |
15 |
7/8 |
3-5/32 |
2-31/64 |
5/8 |
9/32 |
9/32 |
1-11/16 |
0.65 |
0.177 |
M6 |
K002 |
P002 |
0.13 |
| KP003 |
17 |
24 |
85 |
67 |
18 |
7 |
7 |
47 |
17.5 |
5 |
M6 |
K003 |
P003 |
0.16 |
| KP003 |
17 |
15/16 |
3-11/32 |
2-41/64 |
23/32 |
9/32 |
9/32 |
1-27/37 |
0.689 |
0.197 |
M6 |
K003 |
P003 |
0.16 |
| KP004 |
20 |
28 |
100 |
80 |
20 |
9 |
9 |
55 |
21 |
6 |
M8 |
K004 |
P04-5 |
0.23 |
| KP004 |
20 |
1-3/32 |
3-15/16 |
3-5/32 |
25/32 |
23/64 |
23/64 |
2-11/64 |
0.827 |
0.236 |
M8 |
K004 |
P04-5 |
0.23 |
| KP005 |
25 |
32 |
112 |
90 |
20 |
10 |
10 |
62 |
22.5 |
6.5 |
M8 |
K005 |
P05-6 |
0.29 |
| KP005 |
25 |
1-17/64 |
4-13/32 |
3-35/64 |
25/32 |
25/64 |
25/64 |
2-7/16 |
0.886 |
0.256 |
M8 |
K005 |
P05-6 |
0.29 |
| KP006 |
30 |
36 |
132 |
106 |
26 |
13 |
11 |
70 |
24.5 |
6.5 |
M10 |
K006 |
P06-7 |
0.45 |
| KP006 |
30 |
5-13/64 |
5-13/64 |
4-11/64 |
1-1/32 |
33/64 |
7/16 |
2-3/4 |
0.965 |
0.256 |
M10 |
K006 |
P06-7 |
0.45 | |
|
|
