SAPR Series

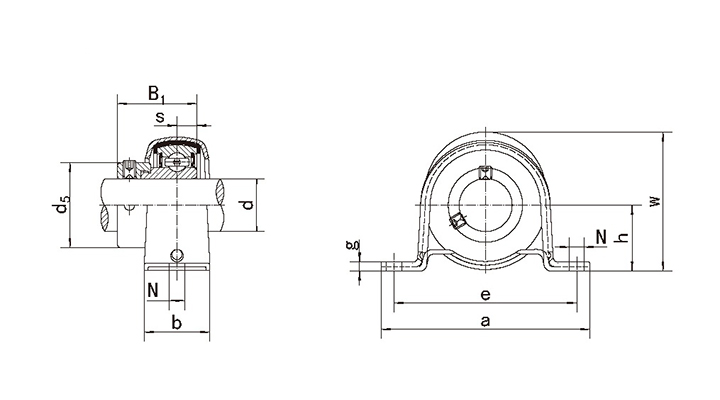

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing NO.	Housing NO.	Rubber Ring NO.	Weight(kg)
Unit NO.	d	h	a	e	b	N	g	w	B₁	s	d₅	Bolt Size mm/in.	Bearing NO.	Housing NO.	Rubber Ring NO.	Weight(kg)
SAPR201	12	25.4	98	76	32	9.5	3.2	50.5	28.6	6.5	28.6	M8	SA201	PP204	R-4	0.17
SAPR201-8	1/2	1	3-55/64	2-63/64	1-17/64	3/8	1/8	1-63/64	1.126	0.256	1-1/8	5/8	SA201-8	PP204	R-4	0.17
SAPR202	15	25.4	98	76	32	9.5	3.2	50.5	28.6	6.5	28.6	M8	SA202	PP204	R-4	0.17
SAPR202-10	5/8	1	3-55/64	2-63/64	1-17/64	3/8	1/8	1-63/64	1.126	0.256	1-1/8	5/8	SA202-10	PP204	R-4	0.17
SAPR203	17	25.4	98	76	32	9.5	3.2	50.5	28.6	6.5	28.6	M8	SA203	PP204	R-4	0.17
SAPR203-11	11/16	1	3-55/64	2-63/64	1-17/64	3/8	1/8	1-63/64	1.126	0.256	1-1/8	5/8	SA203-11	PP204	R-4	0.17
SAPR204	20	28.6	108	86	32	11.5,	4	56.6	31	7.5	33.3	M10	SA204	PP205	R-5	0.24
SAPR204-12	3/4	1-1/8	4-1/4	3-25/64	1-17/64	29/64	5/32	2-15/64	1.2205	0.295	1-5/16	3/8	SA204-12	PP205	R-5	0.24
SAPR205	25	33.3	117	95	38	11.5	4	66.3	31	7.5	38.1	M10	SA205	PP206	R-6	0.35
SAPR205-14	7/8	1-5/16	4-39/64	3-47/64	1-1/2	29/64	5/32	2-39/64	1.2205	0.295	1-1/2	3/8	SA205-14	PP206	R-6	0.35
SAPR205-15	15/16	1-5/16	4-39/64	3-47/64	1-1/2	29/64	5/32	2-39/64	1.2205	0.295	1-1/2	3/8	SA205-15	PP206	R-6	0.35
SAPR205-16	1	1-5/16	4-39/64	3-47/64	1-1/2	29/64	5/32	2-39/64	1.2205	0.295	1-1/2	3/8	SA205-16	PP206	R-6	0.35
SAPR206	30	39.7	129	106	42	11.5	4.6	78	35.7	9	44.5	M10	SA206	PP207	R-7	0.48
SAPR206-17	1-1/16	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.4055	0.354	1-3/4	3/8	SA206-17	PP207	R-7	0.48
SAPR206-18	1-1/8	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.4055	0.354	1-3/4	3/8	SA206-18	PP207	R-7	0.48
SAPR206-19	1-3/16	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.4055	0.354	1-3/4	3/8	SA206-19	PP207	R-7	0.48
SAPR206-20	1-1/4	1-9/16	5-5/64	4-11/64	1-21/32	29/64	3/16	3-5/64	1.4055	0.354	1-3/4	3/8	SA206-20	PP207	R-7	0.48
