SAFD Series

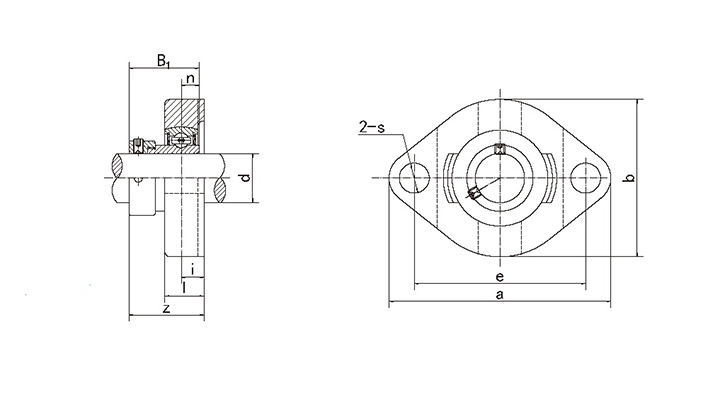

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s l z B1 n
SAFD201 12 81 63 59 8.5 7 15 30.6 28.6 6.5 M6 SA201 FD201 0.29
SAFD201-8 1/2 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 1-13/64 1.126 0.2559 1/4 SA201-8 FD201 0.29
SAFD202 15 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 1-13/64 1.126 0.2559 1/4 SA202 FD202 0.29
SAFD202-9 9/16 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 1-13/64 1.126 0.2559 1/4 SA202-9 FD202 0.29
SAFD202-10 5/8 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 1-13/64 1.126 0.2559 1/4 SA202-10 FD202 0.29
SAFD203 17 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 1-13/64 1.126 0.2559 1/4 SA203 FD203 0.29
SAFD203-11 11/16 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 1-13/64 1.126 0.2559 1/4 SA203-11 FD203 0.29
SAFD204 20 90 71 67 9.5 10 17 33 31 7.5 M8 SA204 FD204 0.4
SAFD204-12 3/4 3-35/64 2-51/64 2-41/64 3/8 25/64 43/64 1-19/64 1.2204 0.2953 5/16 SA204-12 FD204 0.4
SAFD205 25 95 76 71 9.5 10 17 33 31 7.5 M8 SA205 FD205 0.45
SAFD205-13 13/16 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-19/64 1.2204 0.2953 5/16 SA205-13 FD205 0.45
SAFD205-14 7/8 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-19/64 1.2204 0.2953 5/16 SA205-14 FD205 0.45
SAFD205-15 15/16 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-19/64 1.2204 0.2953 5/16 SA205-15 FD205 0.45
SAFD205-16 1 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-19/64 1.2204 0.2953 5/16 SA205-16 FD205 0.45
SAFD206 30 113 90 84 12 12 21 38.7 35.7 9 M10 SA206 FD206 0.72
SAFD206-17 1-1/16 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-17/32 1.4055 0.3543 3/8 SA206-17 FD206 0.72
SAFD206-18 1-1/8 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-17/32 1.4055 0.3543 3/8 SA206-18 FD206 0.72
SAFD206-19 1-3/16 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-17/32 1.4055 0.3543 3/8 SA206-19 FD206 0.72
SAFD206-20 1-1/4 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-17/32 1.4055 0.3543 3/8 SA206-20 FD206 0.72
SAFD207 35 125 100 94 12.5 12 22 41.9 38.9 9.5 M10 SA207 FD207 1

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s l z B1 n
SAFD207-20 1-1/4 4-59/64 3-15/16 3-45/64 1/2 15/32 7/8 1-21/32 1.5315 0.374 3/8 SA207-20 FD207 1
SAFD207-21 1-5/16 4-59/64 3-15/16 3-45/64 1/2 15/32 7/8 1-21/32 1.5315 0.374 3/8 SA207-21 FD207 1
SAFD207-22 1/3/8 4-59/64 3-15/16 3-45/64 1/2 15/32 7/8 1-21/32 1.5315 0.374 3/8 SA207-22 FD207 1
SAFD207-23 1-7/16 4-59/64 3-15/16 3-45/64 1/2 15/3, 2 7/8 1-21/32 1.5315 0.374 3/8 SA207-23 FD207 1
