| Current location: Home > Pillow_blcok_bearings > UCC Series |
| Unit NO. |

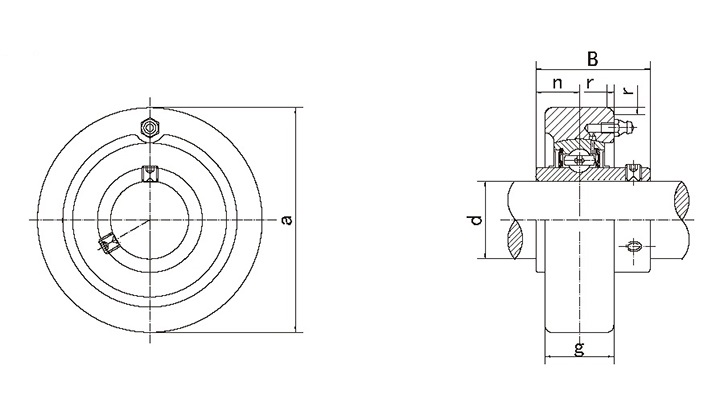

Dimensions(mm/in.) |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
g |
r |
B |
n |
| UCC201 |
12 |
72 |
20 |
2 |
31 |
12.7 |
UC201 |
C201 |
0.52 |
| UCC 201-8 |
1/2 |
2.8346 |
25/32 |
0.079 |
1.2205 |
0.5 |
UC201-8 |
C201 |
0.51 |
| UCC202 |
15 |
72 |
20 |
2 |
31 |
12.7 |
UC202 |
C202 |
0.51 |
| UCC 202-9 |
9/16 |
2.8346 |
25/32 |
0.079 |
1.2205 |
0.5 |
UC202-9 |
C202 |
0.51 |
| UCC 202-10 |
5/8 |
2.8346 |
25/32 |
0.079 |
1.2205 |
0.5 |
UC202-10 |
C202 |
0.51 |
| UCC203 |
17 |
72 |
20 |
2 |
31 |
12.7 |
UC203 |
C203 |
0.5 |
| UCC 203-11 |
11/16 |
2.8346 |
25/32 |
0.079 |
1.2205 |
0.5 |
UC203-11 |
C203 |
0.49 |
| UCC204 |
20 |
72 |
20 |
2 |
31 |
12.7 |
UC204 |
C204 |
0.48 |
| UCC 204-12 |
3/4 |
2.8346 |
25/32 |
0.079 |
1.2205 |
0.5 |
UC204-12 |
C204 |
0.48 |
| UCC205 |
25 |
80 |
22 |
2 |
34.1 |
14.3 |
UC205 |
C205 |
0.63 |
| UCC 205-13 |
13/16 |
3.1496 |
55/64 |
0.079 |
1.3425 |
0.563 |
UC205-13 |
C205 |
0.67 |
| UCC 205-14 |
7/8 |
3.1496 |
55/64 |
0.079 |
1.3425 |
0.563 |
UC205-14 |
C205 |
0.66 |
| UCC 205-15 |
15/16 |
3.1496 |
55/64 |
0.079 |
1.3425 |
0.563 |
UC205-15 |
C205 |
0.64 |
| UCC 205-16 |
1 |
3.1496 |
55/64 |
0.079 |
1.3425 |
0.563 |
UC205-16 |
C205 |
0.63 |
| UCC206 |
30 |
85 |
27 |
2 |
38.1 |
15.9 |
UC206 |
C206 |
0.79 |
| UCC 206-17 |
1-1/16 |
3.3465 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UC206-17 |
C206 |
0.8 |
| UCC 206-18 |
1-1/8 |
3.3465 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UC206-18 |
C206 |
0.81 |
| UCC 206-19 |
1-3/16 |
3.3465 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UC206-19 |
C206 |
0.79 |
| UCC 206-20 |
1-1/4 |
3.3465 |
1-1/16 |
0.079 |
1.5 |
0.626 |
UC206-20 |
C206 |
0.78 |
| UCC207 |
35 |
90 |
28 |
2 |
42.9 |
17.5 |
UC207 |
C207 |
0.88 |
| Unit NO. |
Dimensions(mm/in.) |
Bearing NO. |
Housing NO. |
Weight(kg) |
| d |
a |
g |
r |
B |
n |
| UCC 207-20 |
1-1/4 |
3.5433 |
1-7/64 |
0.079 |
1.689 |
0.689 |
UC207-20 |
C207 |
0.94 |
| UCC 207-21 |
1-5/16 |
3.5433 |
1-7/64 |
0.079 |
1.689 |
0.689 |
UC207-21 |
C207 |
0.91 |
| UCC 207-22 |
1-3/8 |
3.5433 |
1-7/64 |
0.079 |
1.689 |
0.689 |
UC207-22 |
C207 |
0.88 |
| UCC 207-23 |
1-7/16 |
3.5433 |
1-7/64 |
0.079 |
1.689 |
0.689 |
UC207-23 |
C207 |
0.85 |
| UCC208 |
40 |
100 |
30 |
2.5 |
49.2 |
19 |
UC208 |
C208 |
1.17 |
| UCC 208-24 |
1-1/2 |
3.937 |
1-3/16 |
0.098 |
1.937 |
0.748 |
UC208-24 |
C208 |
1.21 |
| UCC 208-25 |
1-9/16 |
3.937 |
1-3/16 |
0.098 |
1.937 |
0.748 |
UC208-25 |
C208 |
1.18 |
| UCC209 |
45 |
110 |
31 |
2.5 |
49.2 |
19 |
UC209 |
C209 |
1.46 |
| UCC 209-26 |
1-5/8 |
4.3307 |
1-7/32 |
0.098 |
1.937 |
0.748 |
UC209-26 |
C209 |
1.56 |
| UCC 209-27 |
1-11/16 |
4.3307 |
1-7/32 |
0.098 |
1.937 |
0.748 |
UC209-27 |
C209 |
1.52 |
| UCC 209-28 |
1-3/4 |
4.3307 |
1-7/32 |
0.098 |
1.937 |
0.748 |
UC209-28 |
C209 |
1.48 |
| UCC210 |
50 |
120 |
33 |
2.5 |
51.6 |
19 |
UC210 |
C210 |
1.85 |
| UCC 210-29 |
1-13/16 |
4.7244 |
1-19/64 |
0.098 |
2.0315 |
0.748 |
UC210-29 |
C210 |
1.97 |
| UCC 210-30 |
1-7/8 |
4.7244 |
1-19/64 |
0.098 |
2.0315 |
0.748 |
UC210-30 |
C210 |
1.92 |
| UCC 210-31 |
1-15/16 |
4.7244 |
1-19/64 |
0.098 |
2.0315 |
0.748 |
UC210-31 |
C210 |
1.87 |
| UCC 210-32 |
2 |
4.7244 |
1-19/64 |
0.098 |
2.0315 |
0.748 |
UC210-32 |
C210 |
1.83 |
| UCC211 |
55 |
125 |
35 |
2.5 |
55.6 |
22.2 |
UC211 |
C211 |
2.05 |
| UCC 211-32 |
2 |
4.9213 |
1-3/8 |
0.098 |
2.189 |
0.874 |
UC211-32 |
C211 |
2.2 |
| UCC 211-33 |
2-1/16 |
4.9213 |
1-3/8 |
0.098 |
2.189 |
0.874 |
UC211-33 |
C211 |
2.14 |
| UCC 211-34 |
2-1/8 |
4.9213 |
1-3/8 |
0.098 |
2.189 |
0.874 |
UC211-34 |
C211 |
2.1 | |
|
|
