square flanged housing

product category

Current location: Home > Pillow_blcok_bearings > square flanged housing

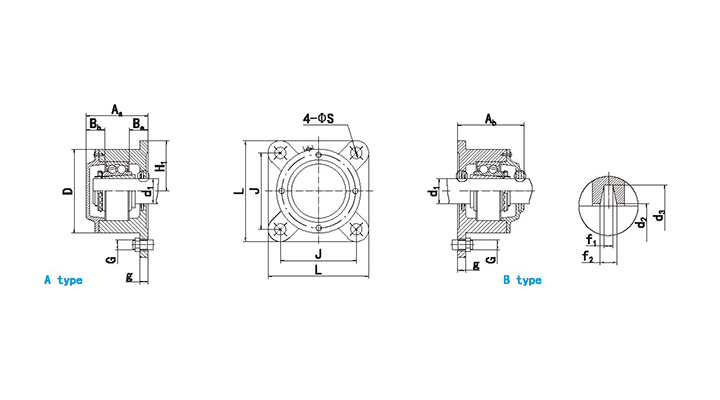

Bearing NO. A/B	Dimensions(mm)																		Bearing NO.	Adapter Sleeve	Location Ring		wt(kg)
Bearing NO. A/B	d₁	A_a	A_b	g	B_a	B_b	D	H₁	J	L	S	f₁	f₂	d₂	d₃	G	DA	DB	Bearing NO.	Adapter Sleeve	Number	QTY	A	B
722515A	65	100	107	25	30	23	168	95	152	190	18	5	6.8	66.5	82	M16	10.55	10.85	1215K	H215	FRB8x130	2	10.55	10.85
722515B	65	100	107	25	30	23	168	95	152	190	18	5	6.8	66.5	82	M16	10.55	10.85	1215K	H215	FRB8x130	2	10.55	10.85
722515A	65	100	107	25	30	23	168	95	152	190	18	5	6.8	66.5	82	M16	10.55	10.85	2215K	H315	FRB10x130	1	10.55	10.85
722515B	65	100	107	25	30	23	168	95	152	190	18	5	6.8	66.5	82	M16	10.55	10.85	2215K	H315	FRB10x130	1	10.55	10.85
722515A	65	100	107	25	30	23	168	95	152	190	18	5	6.8	66.5	82	M16	10.55	10.85	22215EK	H315	FRB10x130	1	10.55	10.85
722515B	65	100	107	25	30	23	168	95	152	190	18	5	6.8	66.5	82	M16	10.55	10.85	22215EK	H315	FRB10x130	1	10.55	10.85
722516A	70	102	114	25	31	22	176	98	152	196	18	6	8.1	71.5	89	M16	12.3	12.7	1216K	H216	FRB8.5x140	2	12.3	12.7
722516B	70	102	114	25	31	22	176	98	152	196	18	6	8.1	71.5	89	M16	12.3	12.7	1216K	H216	FRB8.5x140	2	12.3	12.7
722516A	70	102	114	25	31	22	176	98	152	196	18	6	8.1	71.5	89	M16	12.3	12.7	2216K	H316	FRB10x140	1	12.3	12.7
722516B	70	102	114	25	31	22	176	98	152	196	18	6	8.1	71.5	89	M16	12.3	12.7	2216K	H316	FRB10x140	1	12.3	12.7
722516A	70	102	114	25	31	22	176	98	152	196	18	6	8.1	71.5	89	M16	12.3	12.7	22216EK	H316	FRB10x140	1	12.3	12.7
722516B	70	102	114	25	31	22	176	98	152	196	18	6	8.1	71.5	89	M16	12.3	12.7	22216EK	H316	FRB10x140	1	12.3	12.7
722517A	75	107	115	25	31	24	188	105	170	210	22	6	8.1	76.5	94	M16	14.75	15.5	1217K	H217	FRB9x150	2	14.75	15.5
722517B	75	107	115	25	31	24	188	105	170	210	22	6	8.1	76.5	94	M16	14.75	15.5	1217K	H217	FRB9x150	2	14.75	15.5
722517A	75	107	115	25	31	24	188	105	170	210	22	6	8.1	76.5	94	M16	14.75	15.5	2217K	H317	FRB10x150	1	14.75	15.5
722517B	75	107	115	25	31	24	188	105	170	210	22	6	8.1	76.5	94	M16	14.75	15.5	2217K	H317	FRB10x150	1	14.75	15.5
722517A	75	107	115	25	31	24	188	105	170	210	22	6	8.1	76.5	94	M16	14.75	15.5	22217EK	H317	FRB10x150	1	14.75	15.5
722517B	75	107	115	25	31	24	188	105	170	210	22	6	8.1	76.5	94	M16	14.75	15.5	22217EK	H317	FRB10x150	1	14.75	15.5
722518A	80	112	119	25	30	25	198	105	170	210	22	6	8.1	81.5	99	M16	16.35	17	1218K	H218	FRB10x160	2	16.35	17
722518B	80	112	119	25	30	25	198	105	170	210	22	6	8.1	81.5	99	M16	16.35	17	1218K	H218	FRB10x160	2	16.35	17
