square hole relubricable

product category

Current location: Home > Pillow_blcok_bearings > square hole relubricable

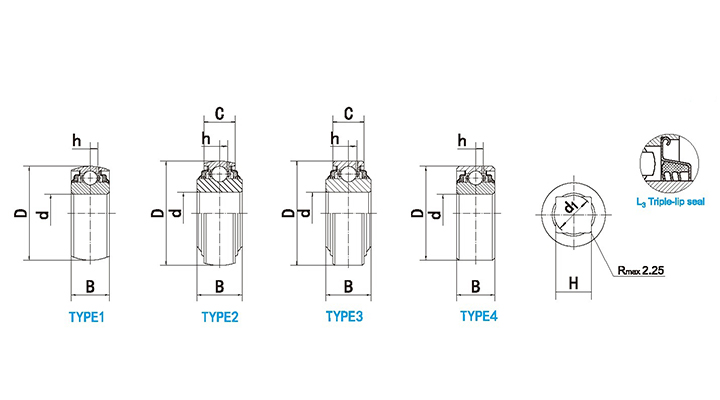

Bearing NO.	Type	Dimensions(in./mm)						Dynamic load rating(N)	Static load ratings(N)	Weight(kg)
Bearing NO.	Type	d₁	H	D	C	B	h	Dynamic load rating(N)	Static load ratings(N)	Weight(kg)
GW208 PPB5	2	1.2598	1.18	3.149	0.945	1.437	0.252	29500	18100	0.635
GW208 PPB5	2	32	29.972	80	24	36.5	6.4	29500	18100	0.635
GW208 PPB6	2	1.0945	1.03	3.149	0.945	1.437	0.252	29500	18100	0.762
GW208 PPB6	2	27.8	26.162	80	24	36.5	6.4	29500	18100	0.762
GW208 PPB8	2	1.2598	1.18	3.149	0.945	1.189	0.252	29500	18100	0.658
GW208 PPB8	2	32	29.972	80	24	30.2	6.4	29500	18100	0.658
GW209 PPB5	2	1.3504	1.29	3.3465	1.189	1.437	0.2598	32700	20900	0.795
GW209 PPB5	2	34.3	32.766	85	30.2	36.5	6.6	32700	20900	0.795
GW209 PPB8	2	1.3504	1.29	3.3465	0.8661	1.437	0.2598	32700	20900	0.749
GW209 PPB8	2	34.3	32.766	85	22	36.5	6.6	32700	20900	0.749
GW209 PPB17	2	1.26	1.18	3.3155	1.189	1.437	0.2598	32700	20900	1.922
GW209 PPB17	2	32	29.972	85.738	30.2	36.5	6.6	32700	20900	1.922
GW210 PPB4	1	1.2598	1.18	3.5433	1.189	1.189	0.2598	35000	23200	0.84
GW210 PPB4	1	32	29.972	90	30.2	30.2	6.6	35000	23200	0.84
GW211 PP3	4	1.6535	1.5311	3.937	1.3126	1.3126	0.2992	43300	29200	1.106
GW211 PP3	4	42	38.89	100	33.3	33.3	7.6	43300	29200	1.106
GW211 PPB3	1	1.6535	1.5311	3.937	1.3126	1.3126	0.2992	43300	29200	1.036
GW211 PPB3	1	42	38.89	100	33.3	33.3	7.6	43300	29200	1.036
GW211 PP5	3	1.6535	1.5311	4	1.437	1.75	0.2992	43300	29200	1.302
GW211 PP5	3	42	38.89	101.6	36.5	44.45	7.6	43300	29200	1.302

Bearing NO.	Type	Dimensions(in./mm)						Dynamic load rating(N)	Static load ratings(N)	Weight(kg)
Bearing NO.	Type	d₁	H	D	C	B	h	Dynamic load rating(N)	Static load ratings(N)	Weight(kg)
GW211 PP17	3	1.6535	1.5311	3.937	1.3126	1.75	0.2992	43300	29200	1.252
GW211 PP17	3	42	38.89	100	33.3	44.45	7.6	43300	29200	1.252
GW214 PPB4	1	2.161	2.055	4.9213	1.563	1.563	0.3543	62100	44800	2.157
GW214 PPB4	1	54.9	52.2	125	39.7	39.7	9	62100	44800	2.157
