Current location: Home > Pillow_blcok_bearings > square hole non-relubricable

square hole non-relubricable

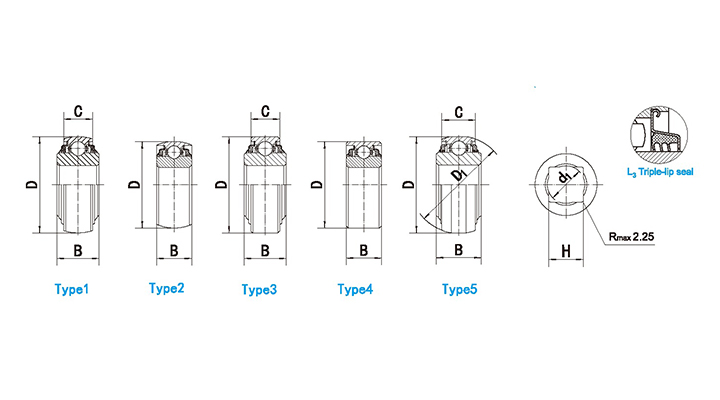

Bearing NO. Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d1 H D D1 C B
W208 PP5 3 1.2598 1.18 3.1496 0.709 1.437 29500 18100 0.6
W208 PP5 3 32 29.972 80 18 36.5 29500 18100 0.6
W208 PPB5 1 1.2598 1.18 3.1496 0.709 1.437 29500 18100 0.59
W208 PPB5 1 32 29.972 80 18 36.5 29500 18100 0.59
W208 PP6 3 1.0945 1.03 3.1496 0.709 1.437 29500 18100 0.662
W208 PP6 3 27.8 26.162 80 18 36.5 29500 18100 0.662
W208 PPB6 1 1.0945 1.03 3.1496 0.709 1.437 29500 18100 0.652
W208 PPB6 1 27.8 26.162 80 18 36.5 29500 18100 0.652
W208 PP8 3 1.2598 1.18 3.1496 0.709 1.437 29500 18100 0.709
W208 PP8 3 32 29.972 80 18 36.5 29500 18100 0.709
W208 PPB8 1 1.2598 1.18 3.1496 0.709 1.437 29500 18100 0.735
W208 PPB8 1 32 29.972 80 18 36.5 29500 18100 0.735
W208 PPB9 1 1.0945 1.03 3.1496 0.709 1.437 29500 18100 0.788
W208 PPB9 1 27.8 26.162 80 18 36.5 29500 18100 0.788
W208 PPB11 5 0.9746 0.905 3.402 3.4385 0.709 1.437 29500 18100 0.956
W208 PPB11 5 24.8 22.987 85.75 87.338 18 36.5 29500 18100 0.956
W208 PPB12 5 1.2598 1.18 3.402 3.4385 0.709 1.437 29500 18100 0.953
W208 PPB12 5 32 29.972 85.75 87.338 18 36.5 29500 18100 0.953
W208 PPB13 1 0.9764 0.905 3.1496 0.709 1.437 29500 18100 0.69
W208 PPB13 1 24.8 22.987 80 18 36.5 29500 18100 0.69

Bearing NO. Type Dimensions(in./mm) Dynamic load ratings(N) Static load ratings(N) Weight(kg)
d1 H D D1 C B
W209 PPB5 1 1.3504 1.29 3.3465 1.189 1.437 32700 20900 0.945
W209 PPB5 1 34.3 32.766 85 30.2 36.5 32700 20900 0.945
W209 PPB8 1 1.3504 1.29 3.3465 0.748 1.437 32700 20900 0.723
W209 PPB8 1 34.3 32.766 85 19 36.5 32700 20900 0.723
W210 PP4 4 1.2598 1.18 3.5433 1.189 1.1882 35000 23200 1.049
W210 PP4 4 32 29.972 90 30.2 30.2 35000 23200 1.049
W210 PPB4 2 1.2598 1.18 3.5433 1.189 1.189 35000 23200 0.846
W210 PPB4 2 32 29.972 90 30.2 30.2 35000 23200 0.846
W210 PPB6 1 1.2598 1.18 3.5433 1.189 1.437 35000 23200 0.733
W210 PPB6 1 32 29.972 90 30.2 36.5 35000 23200 0.733
W211 PP3 4 1.6535 1.5311 3.937 1.3126 1.3126 62100 44800 1.271
W211 PP3 4 42 38.89 100 33.3 33.3 62100 44800 1.271
W211 PPB3 2 1.6535 1.5311 3.937 1.3126 1.3126 35000 23200 1.208
W211 PPB3 2 42 38.89 100 33.3 33.3 35000 23200 1.208
W211 PP5 3 1.6535 1.5311 4 1.437 1.75 43300 29200 1.302
W211 PP5 3 42 38.89 101.6 36.5 44.45 43300 29200 1.302
W211 PPB6 5 1.6535 1.5311 4.0772 4.1299 1.437 1.75 47700 32800 1.61
W211 PPB6 5 42 38.89 103.56 104.9 36.5 44.45 47700 32800 1.61
4509BA 3 1.3504 1.29 3.3465 1.189 1.3976 0.782
4509BA 3 34.3 32.766 85 30.2 35.5 0.782
