round hole non-relubricable
|
| Bearing NO. |

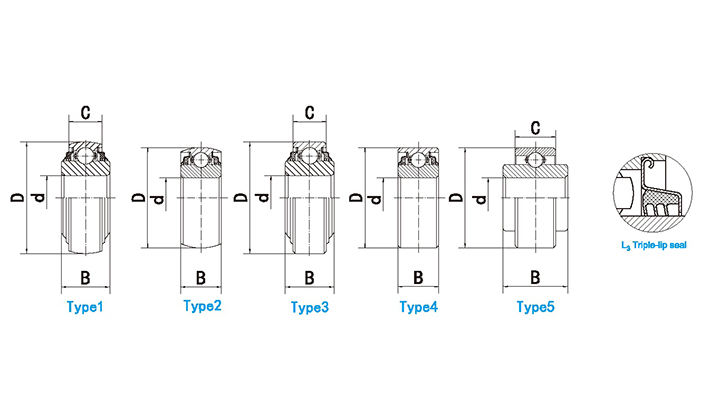

Type |
Dimensions(in./mm) |
Dynamic load ratings(N) |
Static load ratings(N) |
Weight(kg) |
| d |
D |
C |
B |
| W208 PPB2 |
1 |
1.5005 |
3.1496 |
0.709 |
1.6913 |
29500 |
18100 |
0.598 |
| W208 PPB2 |
1 |
38.113 |
80 |
18 |
42.96 |
29500 |
18100 |
0.598 |
| W208 PPB7 |
1 |
1.18 |
3.1496 |
0.709 |
1.189 |
29500 |
18100 |
0.558 |
| W208 PPB7 |
1 |
30.175 |
80 |
18 |
30.2 |
29500 |
18100 |
0.558 |
| W208 PPB10 |
3 |
1.5005 |
3.1496 |
0.8268 |
1.6913 |
29500 |
18100 |
0.817 |
| W208 PPB10 |
3 |
38.113 |
80 |
21 |
42.96 |
29500 |
18100 |
0.817 |
| W208 PPB23 |
1 |
1.5005 |
3.1496 |
1.189 |
1.6913 |
29500 |
18100 |
0.817 |
| W208 PPB23 |
1 |
38.113 |
80 |
30.2 |
42.96 |
29500 |
18100 |
0.817 |
| W209 PPB2 |
2 |
1.7717 |
3.3465 |
1.189 |
1.189 |
32700 |
20900 |
0.566 |
| W209 PPB2 |
2 |
45 |
85 |
30.2 |
30.2 |
32700 |
20900 |
0.566 |
| W209 PPB4 |
2 |
1.535 |
3.3465 |
1.189 |
1.189 |
32700 |
23200 |
0.659 |
| W209 PPB4 |
2 |
39 |
85 |
30.2 |
30.2 |
32700 |
23200 |
0.659 |
| W209 PPB11 |
1 |
1.7811 |
3.3465 |
0.866 |
1.437 |
32700 |
23200 |
0.573 |
| W209 PPB11 |
1 |
45.24 |
85 |
22 |
36.5 |
32700 |
23200 |
0.573 |
| W210 PP2 |
4 |
1.938 |
3.5433 |
1.189 |
1.189 |
35000 |
23200 |
0.667 |
| W210 PP2 |
4 |
49.225 |
90 |
30.2 |
30.2 |
35000 |
23200 |
0.667 |
| W210 PPB2 |
2 |
1.939 |
3.5433 |
1.189 |
1.189 |
35000 |
23200 |
0.708 |
| W210 PPB2 |
2 |
49.225 |
90 |
30.2 |
30.2 |
35000 |
23200 |
0.708 |
| W210 PPB5 |
2 |
1.785 |
3.5433 |
1.189 |
1.189 |
35000 |
23200 |
0.749 |
| W210 PPB5 |
2 |
45.34 |
90 |
30.2 |
30.2 |
35000 |
23200 |
0.749 |
| Bearing NO. |
Type |
Dimensions(in./mm) |
Dynamic load ratings(N) |
Static load ratings(N) |
Weight(kg) |
| d |
D |
C |
B |
| W210 PP8 |
4 |
1.53 |
3.5433 |
1.189 |
1.189 |
35000 |
23200 |
0.836 |
| W210 PP8 |
4 |
38.862 |
90 |
30.2 |
30.2 |
35000 |
23200 |
0.836 |
| W211 PP2 |
4 |
2.18 |
3.937 |
1.311 |
1.311 |
43300 |
29200 |
1.01 |
| W211 PP2 |
4 |
55.575 |
100 |
33.3 |
33.3 |
43300 |
29200 |
1.01 |
| W211 PPB2 |
2 |
2.18 |
3.937 |
1.311 |
1.311 |
43300 |
29200 |
0.81 |
| W211 PPB2 |
2 |
55.575 |
100 |
33.3 |
33.3 |
43300 |
29200 |
0.81 |
| W214 PP2 |
4 |
2.7559 |
4.9213 |
1.563 |
1.563 |
62100 |
44800 |
1.902 |
| W214 PP2 |
4 |
70 |
125 |
39.7 |
39.7 |
62100 |
44800 |
1.902 |
| W214 PPB2 |
2 |
2.7559 |
4.9213 |
1.563 |
1.563 |
62100 |
44800 |
1.667 |
| W214 PPB2 |
2 |
70 |
125 |
39.7 |
39.7 |
62100 |
44800 |
1.667 |
| W214 PPB9 |
1 |
2.7661 |
4.9213 |
1.1024 |
1.75 |
62100 |
44800 |
1.902 |
| W214 PPB9 |
1 |
70.26 |
125 |
28 |
44.45 |
62100 |
44800 |
1.902 |
| WIR210-31 |
5 |
1.937 |
2.543 |
0.787 |
1.937 |
35000 |
23200 |
0.74 |
| WIR210-31 |
5 |
49.2 |
90 |
20 |
49.2 |
35000 |
23200 |
0.74 |
| WIR211-33 |
5 |
2.063 |
3.937 |
0.827 |
2.189 |
43300 |
29200 |
1.122 |
| WIR211-33 |
5 |
52.388 |
100 |
21 |
56.6 |
43300 |
29200 |
1.122 |
| WIR212-39 |
5 |
2.437 |
4.331 |
0.866 |
2.437 |
47700 |
32800 |
1.249 |
| WIR212-39 |
5 |
61.912 |
110 |
22 |
61.9 |
47700 |
32800 |
1.249 | |
|
|
