| Current location: Home > Pillow_blcok_bearings > 200 Series |
| Bearing NO. |

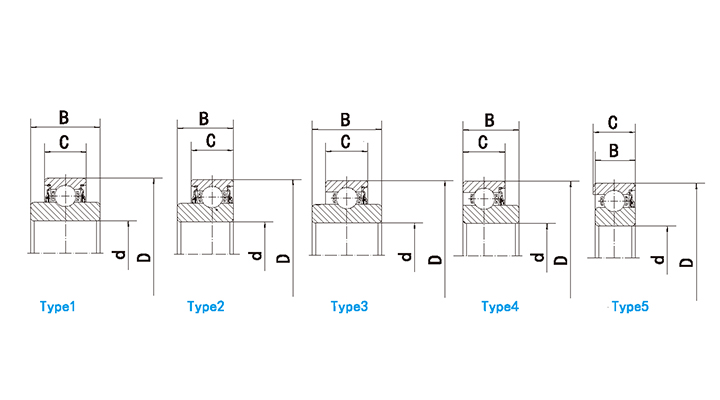

Type |
Dimensions(in./mm) |
Dynamic load ratings(N) |
Static load ratings(N) |
Weight(kg) |
| d |
D |
C |
B |
| 203 KR2 |
4 |
0.625 |
1.5748 |
0.472 |
0.551 |
12800 |
6650 |
0.077 |
| 203 KR2 |
4 |
15.883 |
40 |
12 |
14 |
12800 |
6650 |
0.077 |
| 203 KRR2 |
1 |
0.64 |
1.5748 |
0.472 |
0.72 |
12800 |
6650 |
0.085 |
| 203 KRR2 |
1 |
16.256 |
40 |
12 |
18.288 |
12800 |
6650 |
0.085 |
| 203 KRR5 |
1 |
0.515 |
1.5748 |
0.472 |
0.72 |
12800 |
6650 |
0.096 |
| 203 KRR5 |
1 |
13.081 |
40 |
12 |
18.288 |
12800 |
6650 |
0.096 |
| 203 KRR6 |
1 |
0.64 |
1.8504 |
0.472 |
0.72 |
12800 |
6650 |
0.13 |
| 203 KRR6 |
1 |
16.256 |
47 |
12 |
18.288 |
12800 |
6650 |
0.13 |
| 203 KRR7 |
1 |
0.669 |
1.5748 |
0.472 |
0.654 |
12800 |
6650 |
0.079 |
| 203 KRR7 |
1 |
17 |
40 |
12 |
16.612 |
12800 |
6650 |
0.079 |
| 204 KR2 |
4 |
0.7505 |
1.7805 |
0.61 |
0.61 |
12800 |
6650 |
0.107 |
| 204 KR2 |
4 |
19.063 |
45.225 |
15.494 |
15.494 |
12800 |
6650 |
0.107 |
| 204 KRR3 |
1 |
0.7874 |
1.8504 |
0.551 |
0.699 |
12800 |
6650 |
0.121 |
| 204 KRR3 |
1 |
20 |
47 |
14 |
17.755 |
12800 |
6650 |
0.121 |
| 204 KRD4 |
2 |
0.63 |
1.8504 |
0.551 |
0.689 |
12800 |
6650 |
0.135 |
| 204 KRD4 |
2 |
16 |
47 |
14 |
17.5 |
12800 |
6650 |
0.135 |
| 204 KRR14 |
1 |
0.63 |
1.8504 |
0.591 |
0.72 |
12800 |
6650 |
0.142 |
| 204 KRR14 |
1 |
16 |
47 |
15 |
18.288 |
12800 |
6650 |
0.142 |
| 205 KR3 |
5 |
0.75 |
2.0472 |
0.6992 |
0.6402 |
14000 |
7850 |
0.161 |
| 205 KR3 |
5 |
19.05 |
52 |
17.76 |
16.26 |
14000 |
7850 |
0.161 |
| Bearing NO. |
Type |
Dimensions(in./mm) |
Dynamic load ratings(N) |
Static load ratings(N) |
Weight(kg) |
| d |
D |
C |
B |
| 205 KR4 |
3 |
1.0005 |
2.0472 |
0.591 |
1 |
14000 |
7850 |
0.148 |
| 205 KR4 |
3 |
25.413 |
52 |
15 |
25.4 |
14000 |
7850 |
0.148 |
| 206 KR7 |
3 |
1.181 |
2.441 |
0.63 |
0.945 |
19450 |
11250 |
0.26 |
| 206 KR7 |
3 |
30 |
62 |
16 |
24 |
19450 |
11250 |
0.26 |
| 206 KRR8 |
1 |
1.181 |
2.441 |
0.63 |
0.945 |
19450 |
11250 |
0.26 |
| 206 KRR8 |
1 |
30 |
62 |
16 |
24 |
19450 |
11250 |
0.26 |
| 206 KRR18 |
1 |
1.2598 |
2.441 |
0.63 |
0.945 |
19450 |
11250 |
0.219 |
| 206 KRR18 |
1 |
32 |
62 |
16 |
24 |
19450 |
11250 |
0.219 |
| 207 KRR |
1 |
1.378 |
2.8346 |
0.669 |
0.984 |
25700 |
15200 |
0.35 |
| 207 KRR |
1 |
35 |
72 |
17 |
28 |
25700 |
15200 |
0.35 |
| 208 KRR2 |
1 |
1.5748 |
3.1496 |
0.827 |
1.063 |
29500 |
18100 |
0.45 |
| 208 KRR2 |
1 |
40 |
80 |
21 |
27 |
29500 |
18100 |
0.45 |
| 210 KRR |
1 |
1.9685 |
3.5433 |
0.7874 |
1.181 |
35000 |
23200 |
0.524 |
| 210 KRR |
1 |
50 |
90 |
20 |
30 |
35000 |
23200 |
0.524 |
| 214 KRR |
1 |
2.7559 |
4.9212 |
1.1024 |
1.6929 |
62100 |
44800 |
1.546 |
| 214 KRR |
1 |
70 |
125 |
28 |
43 |
62100 |
44800 |
1.546 | |
|
|
